OVERVIEW

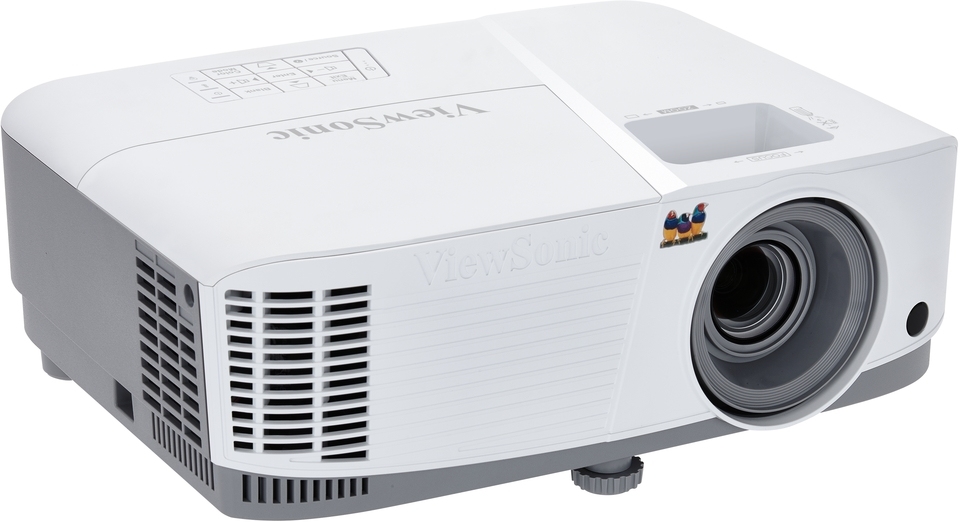

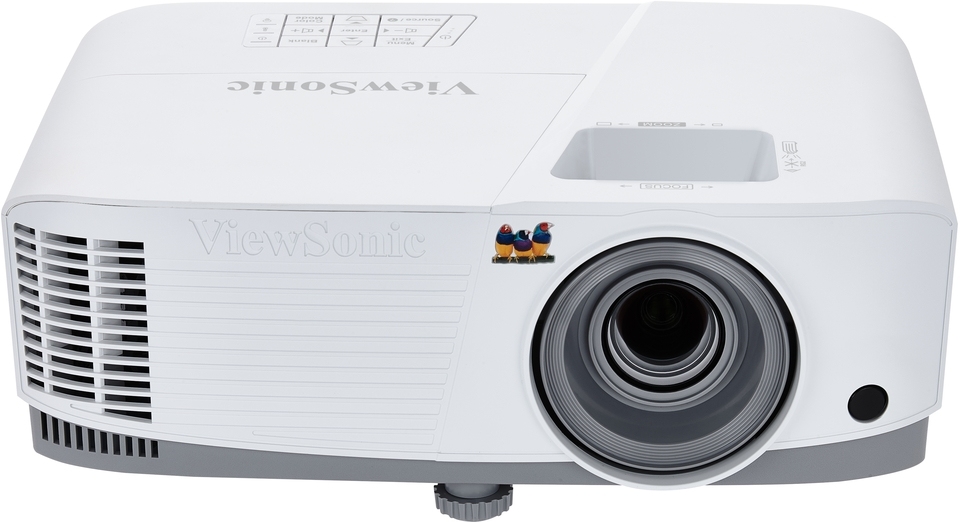

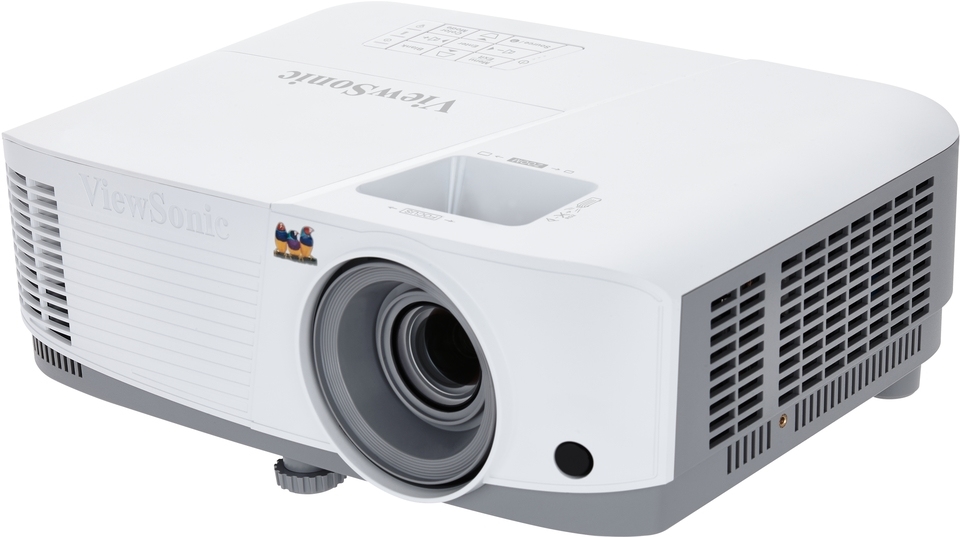

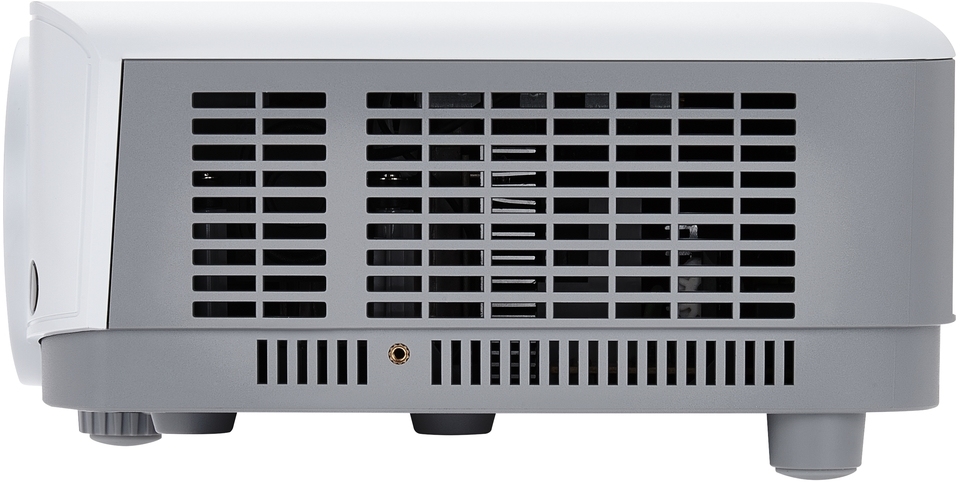

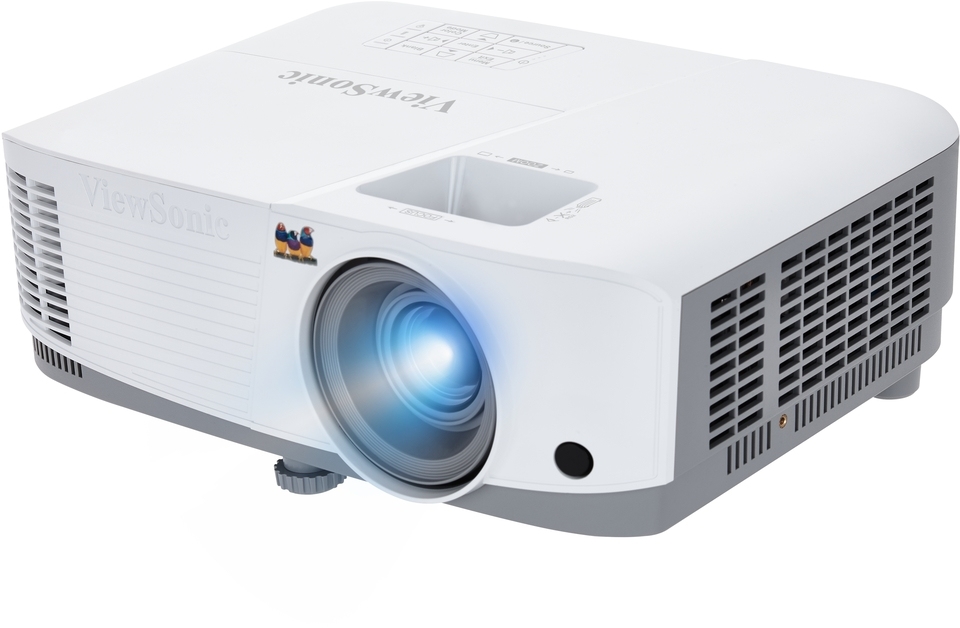

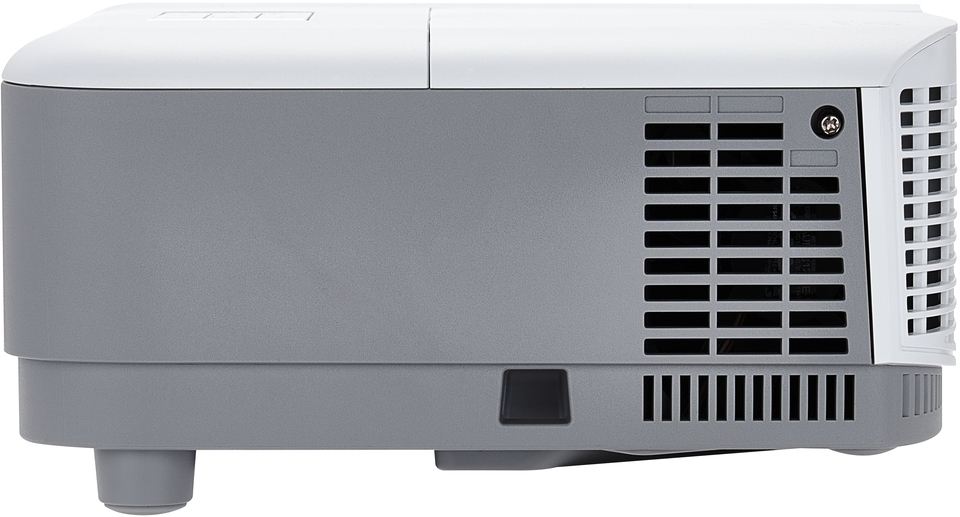

The ViewSonic PA504W is a high-brightness lamp projector tailored for both education and business settings. It features a 1.21-
1.57 throw ratio, allowing seamless projector upgrades in typical installation conditions. With 4000 ANSI Lumens, it ensures
bright, vivid images even in well-lit environments, guaranteeing clarity for every presentation or lesson. Its Texas Instruments'
0.65” DMD Chip elevates the viewing experience with a high native contrast ratio, unveiling fine details for exceptional
sharpness on the screen. Effortlessly switch between content sources via the dual HDMI ports. Additionally, you can combine it
with the ViewSonic WPD-700 Wireless Screen Casting Kit, powered by the projector's USB-A output, for expanded versatility.
Comprehensive LAN control takes this convenience further, providing streamlined device management. Based on DLP
technology, it maintains consistent color performance and great readability over time and features a filter-free design for
minimal maintenance requirements.

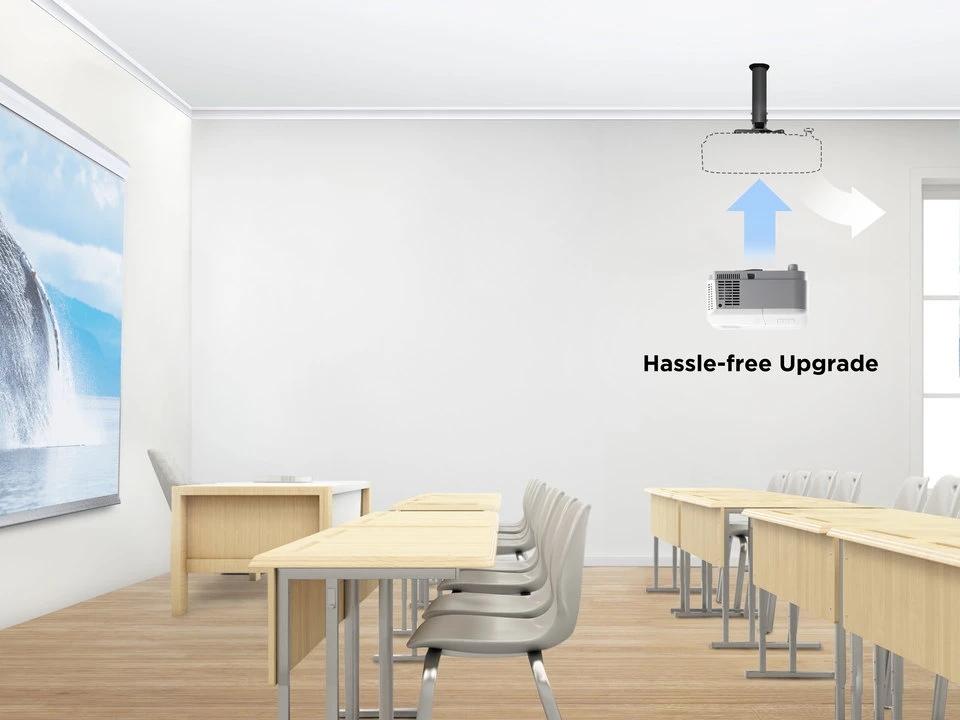

Seamless Projector Upgrades

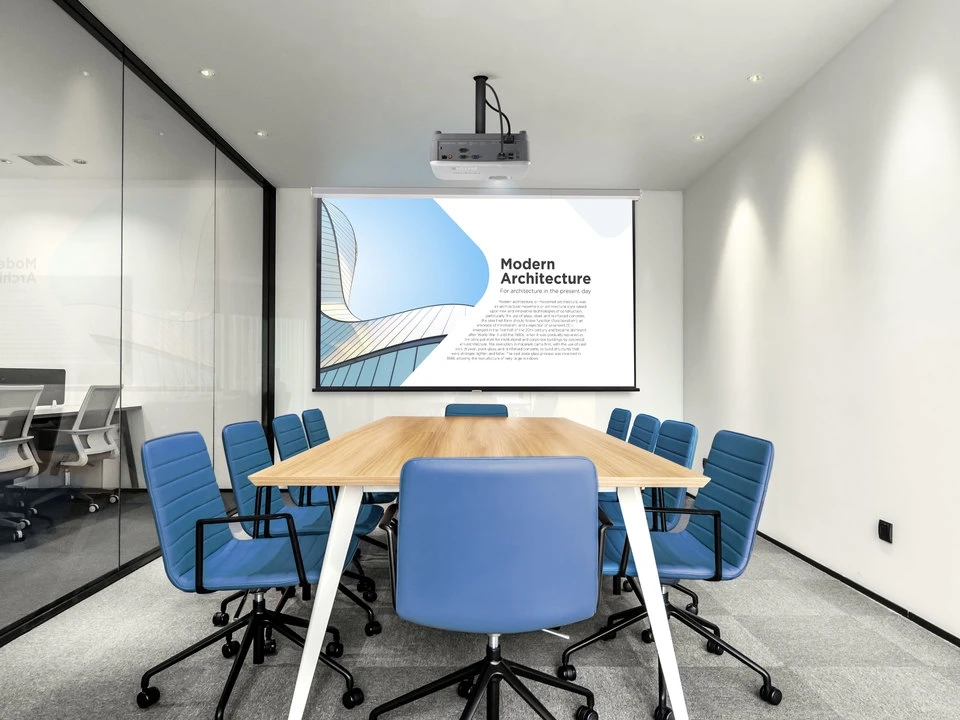

Designed with a 1.21-1.57 throw ratio, the PA504W ensures a seamless installation in classrooms or any meeting room without
changing your existing ceiling mount and projector screen settings. Easily replace old projector models with the PA504W without
hassle.

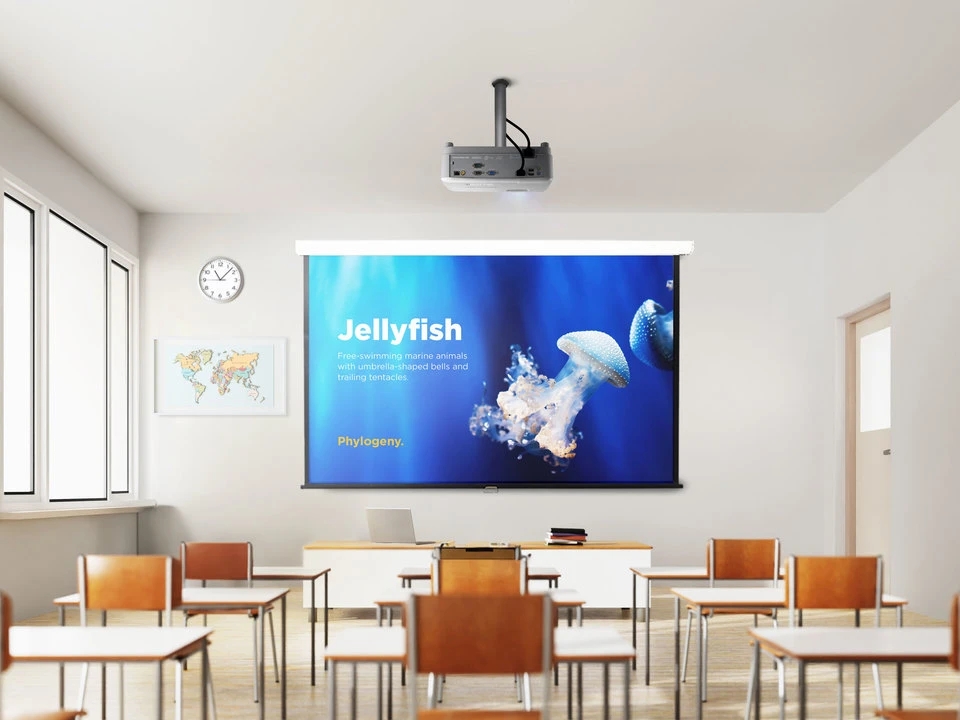

Bright Images for Education & Business
Environments
Featuring 4,000 ANSI Lumens brightness, deliver lessons or presentations with clear and vibrant visuals, even in well-lit
environments.
Convenient Multimedia Connectivity

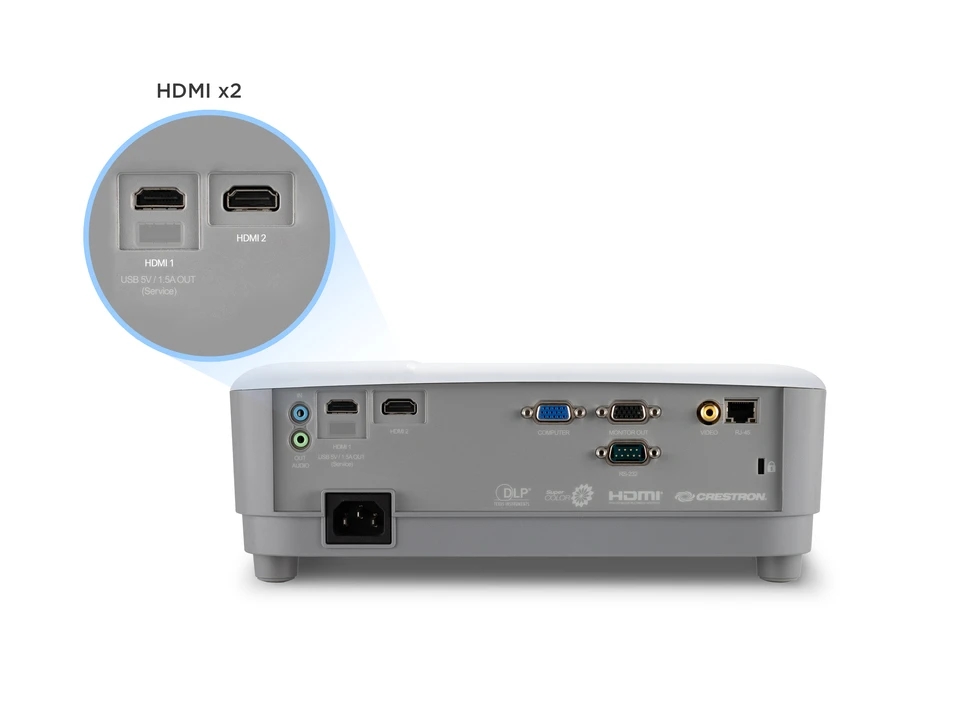

The dual HDMI ports provide extensive connectivity to support all your HDMI-enabled multimedia devices. You no longer need
to unplug your current device to switch to a new one, simply use the remote control to select and change the input source.

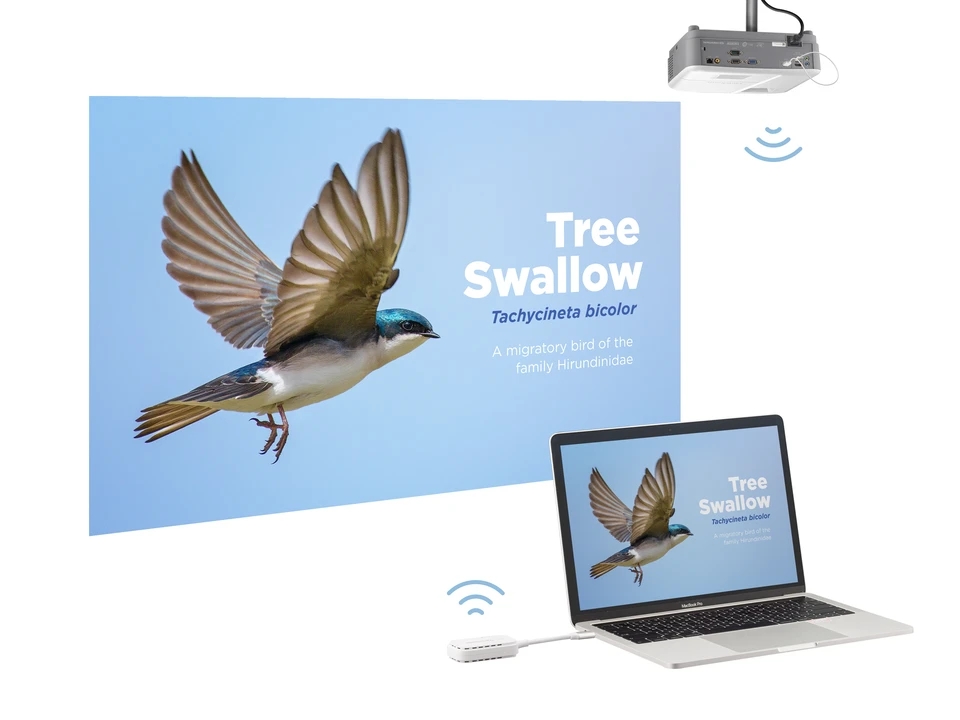

Enable Wireless Content Sharing Capability
Enhance your projector with the WPD-700 Wireless Screen Casting Kit for seamless wireless content sharing. The projector's built-
in 5V/1.5A USB-A output powers the dongle, enabling simultaneous multimedia streaming and power charging without adapters.
WPD-700, USB-A Power Supply
Centralized Control for Efficient Device Management
The PA504W is compatible with Crestron, AMX, PJ Link, ATEN, and Extron systems, enabling centralized device management for
enhanced operational efficiency.

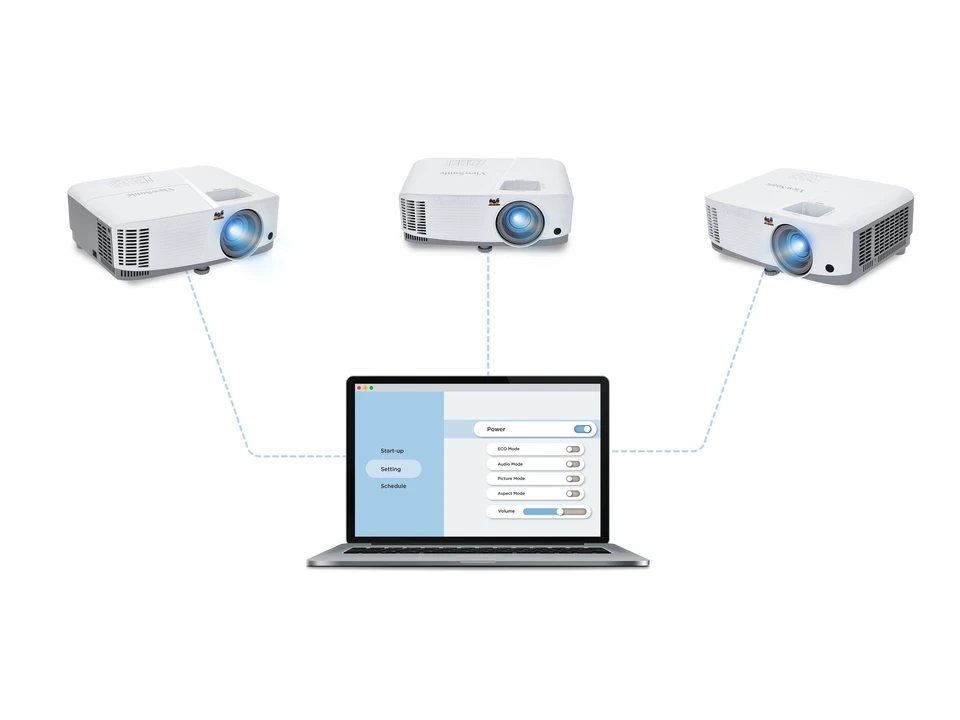

Comprehensive LAN Control
Unmatched Contrasts, Enhanced Visibility
This projector utilizes the advanced 0.65" DMD chip from Texas Instruments, surpassing the capabilities of the 0.47” standard
chip. It offers a high native contrast ratio for deeper blacks, resulting in clearer, more legible images with enhanced visual depth.
0.65” DMD Chip, High Native Contrast Ratio

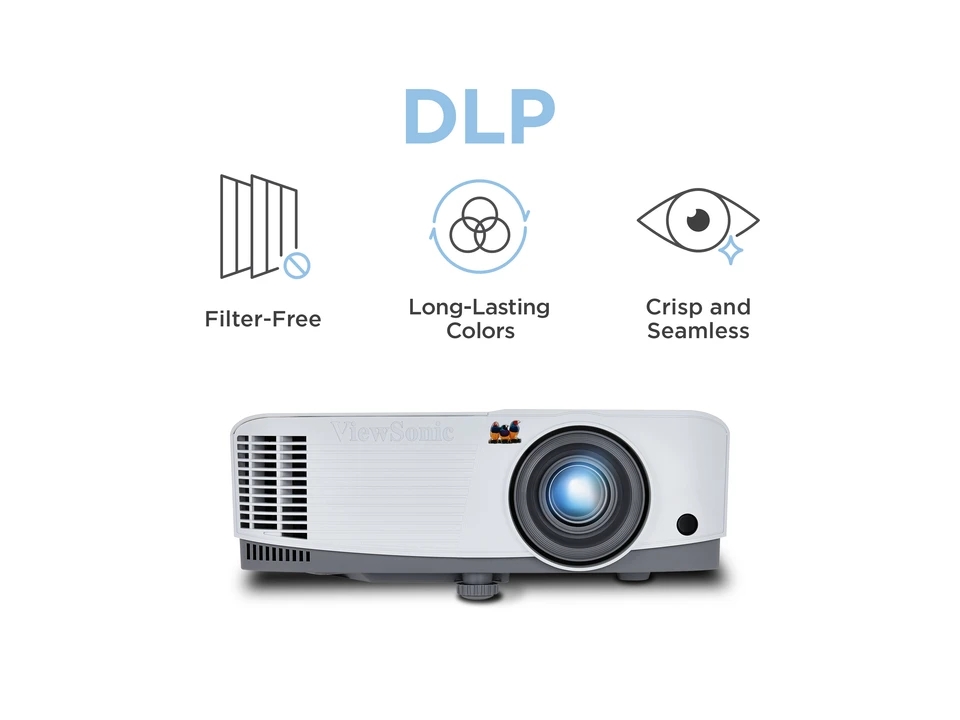

Reliable Long-Term Performance with DLP Projection Technology
With the DLP technology, the PA504W maintains consistent color performance over time, free from any yellowing issues.
Featuring a sealed engine design, it is filter-free, preventing dust from affecting internal components and ensuring minimal
maintenance effort. Moreover, it offers crisp and seamless image quality, displaying remarkable contrast and eliminating the
noticeable screen-door effect.

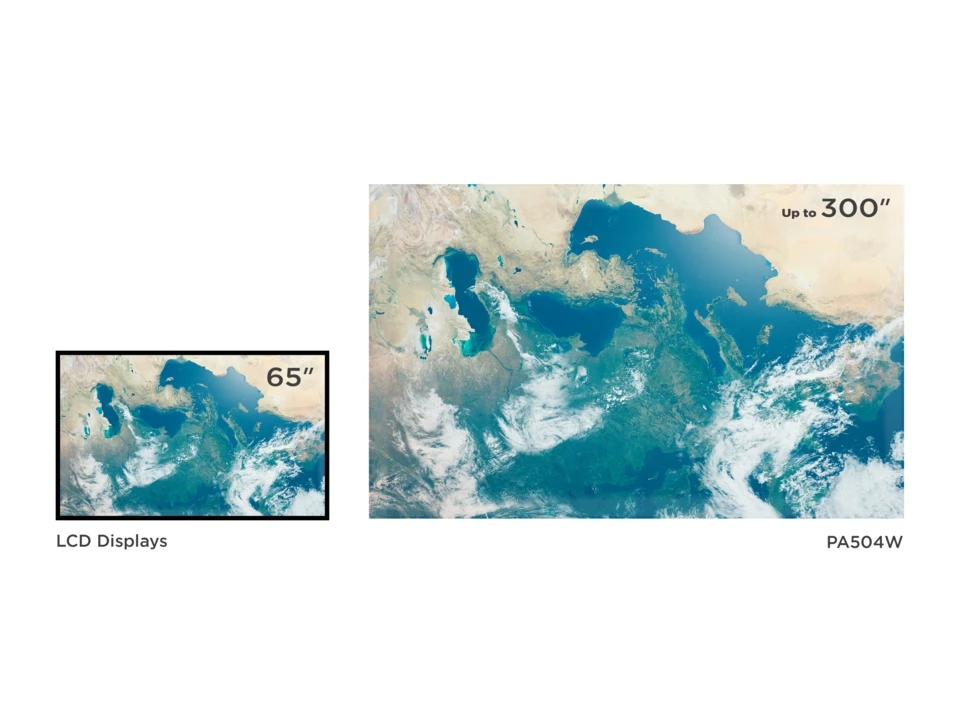

Ultra-Large Screen with Lower Cost-per-inch
This projector can display an image size of up to 300”, boasting an ultra-large screen that ensures visibility in large-audience
classrooms or meeting rooms. Importantly, it presents a cost-effective solution with a lower cost-per-inch than alternative
displays.
A Simpler Way to Update Projector Software

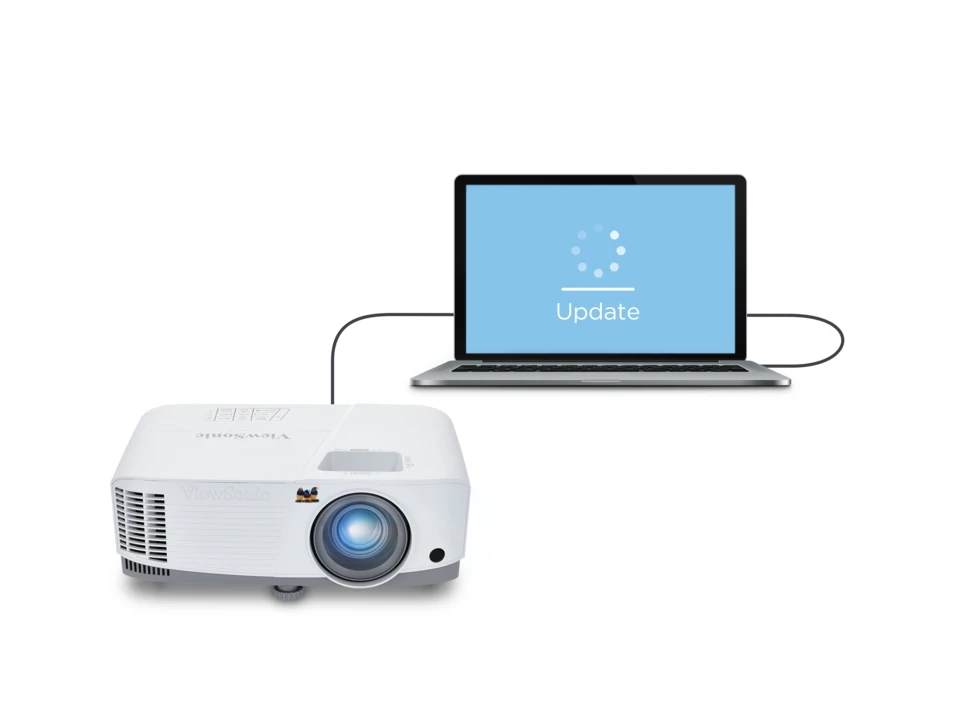

Skip trips to the service center by keeping software up to date easily via USB cable connection with your laptop.
*The latest projector software update can be found in the download section at the bottom of the page when available.
Dimensions & I/O Ports

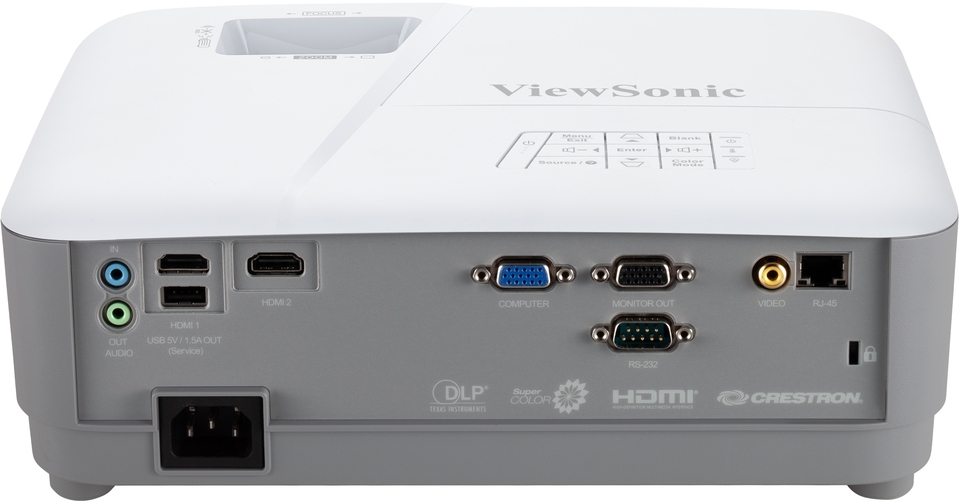

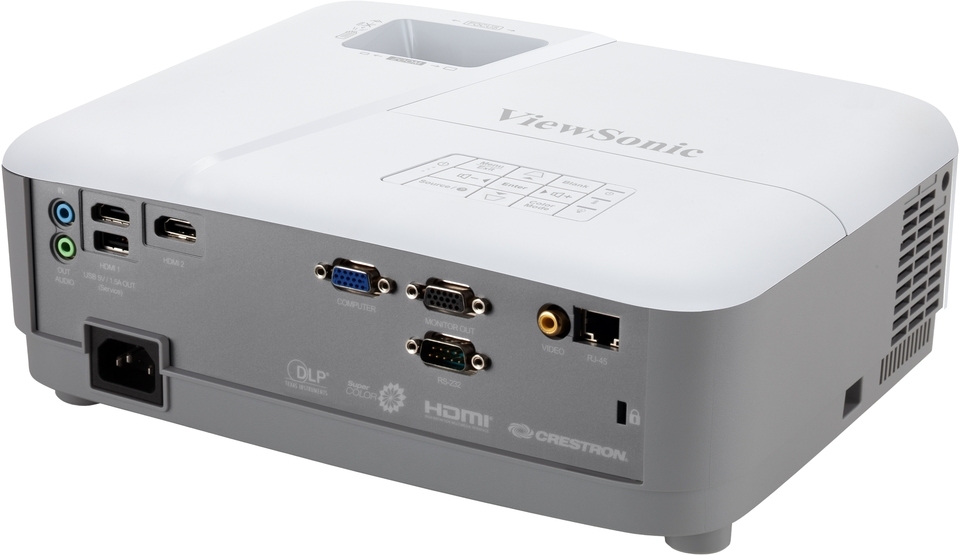

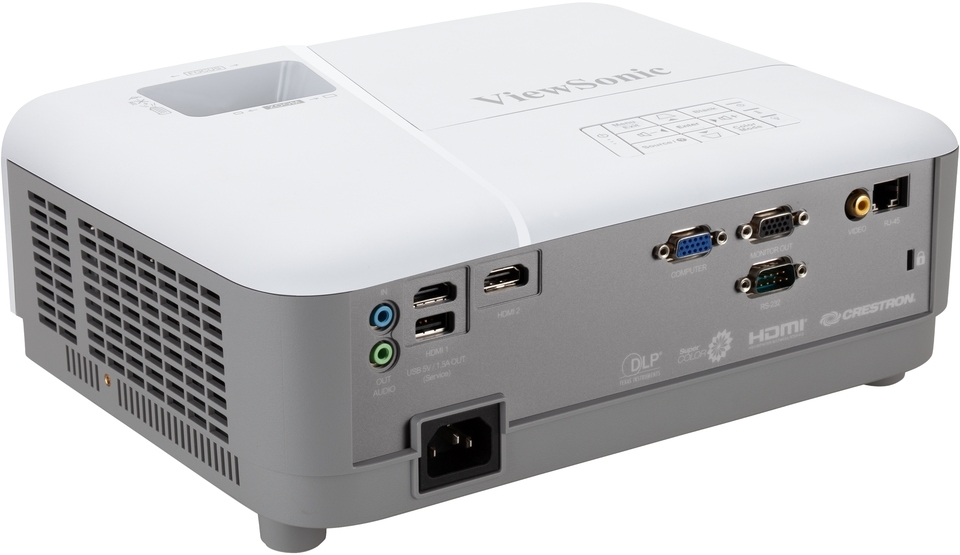

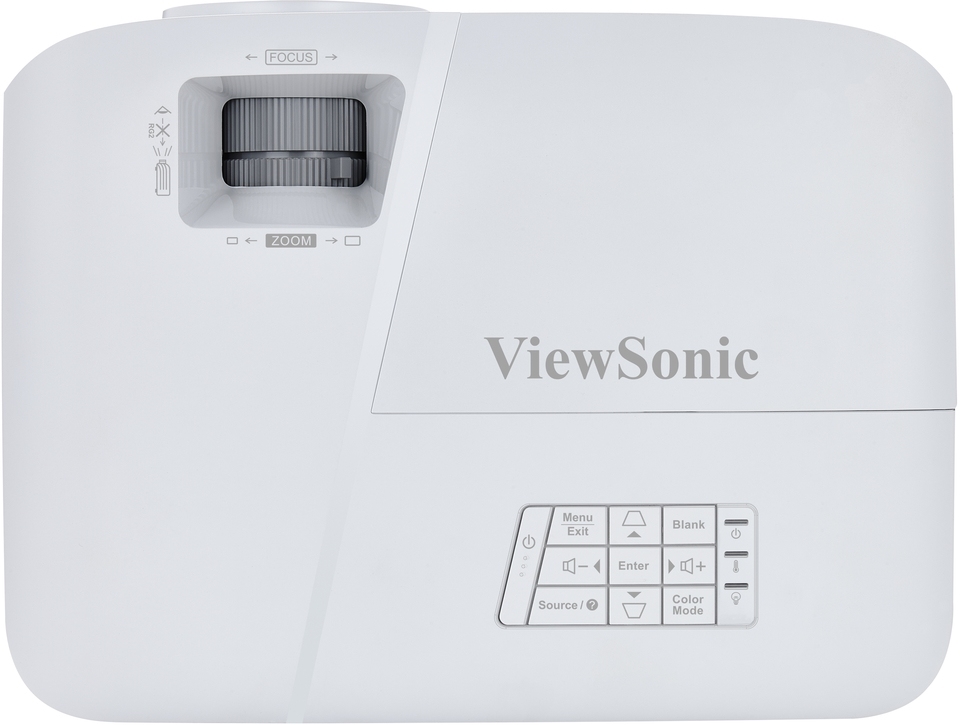

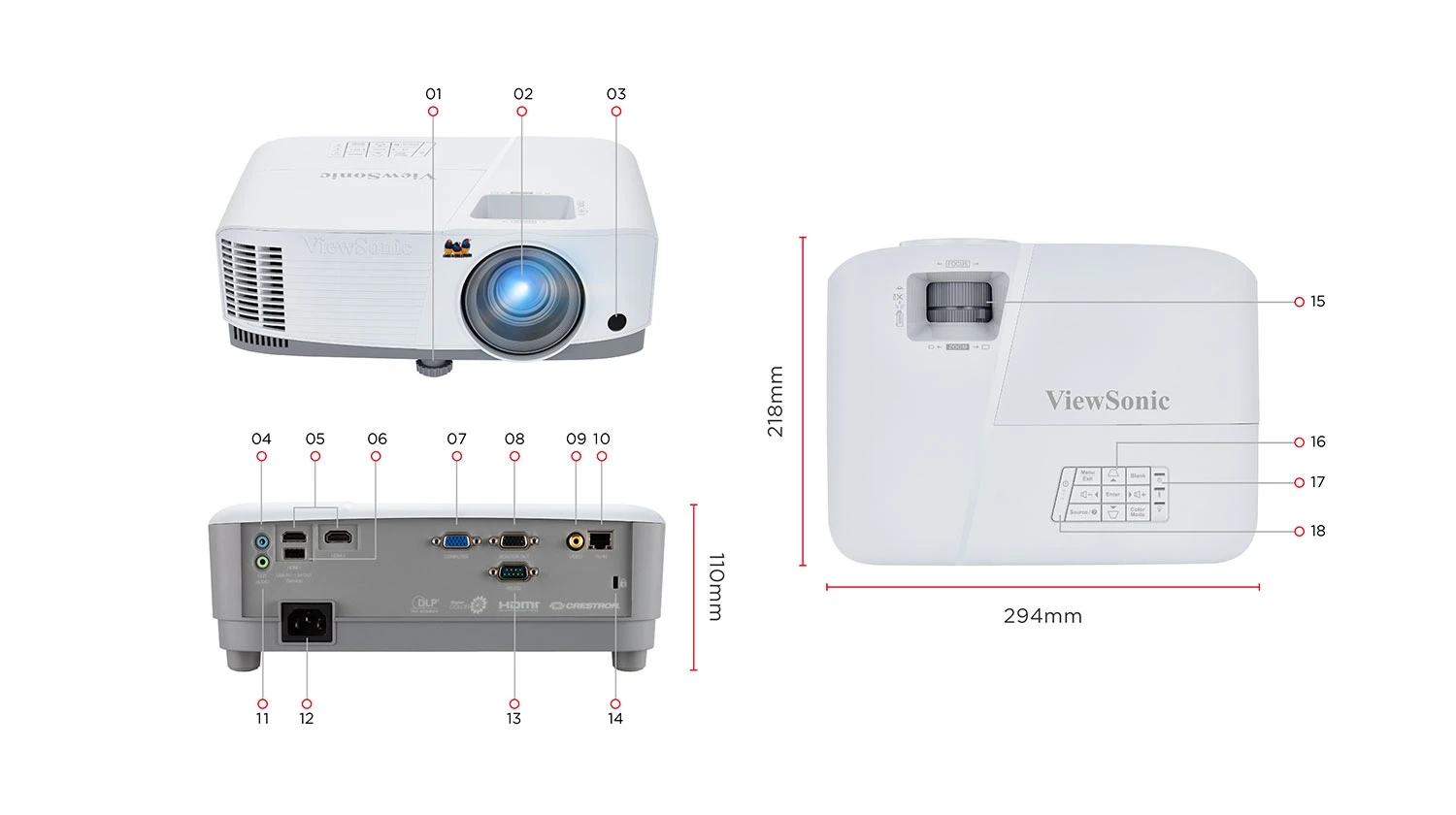

1. Adjustment Foot 4. Audio In 7. Computer In 10. RJ45 13. RS232 16. Keypad
2. Lens 5. HDMI x2 8. Monitor Out 11. Audio Out 14. Kensington Lock 17. LED Indicator
3. Front IR 6. USB-A(5V/1.5A, Service) 9. Video In 12. AC In 15. Zoom/Focus Ring 18. Power Button
SPECIFICATIONS
Specification
Projection System: 0.65" WXGA
Native Resolution: 1280x800
Brightness: 4000 (ANSI Lumens)
Contrast Ratio with SuperEco Mode: 22000:1
Display Color: 1.07 Billion Colors
Light Source Type: 200W UHP Lamp
Light Source Life (hours) with Normal Mode: 6000
Light Source Life (hours) with SuperEco Mode: 15000
Lens: F=2.59-2.87, f=16.88-21.88mm
Projection Offset: 120%+/-5%
Throw Ratio: 1.21-1.57
Optical Zoom: 1.3x
Digital Zoom: 0.8x-2.0x
Image Size: 30"-300"
Throw Distance: 0.78m-10.14m
(100"@2.61m)
Keystone: V:+/-40°
Audible Noise (Normal): 31dB
Audible Noise (Eco) : 27dB
Input Lag: 16ms
Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility: NTSC, PAL, SECAM
Horizontal Frequency: 15K-102KHz
Vertical Scan Rate: 23-120Hz
Input
Computer in (share with component): 1
Composite: 1
HDMI: 2
(HDMI 1.4/ HDCP 1.4)
Audio-in (3.5mm): 1
Output
Monitor out: 1
Audio-out (3.5mm): 1
Speaker: 10W
USB Type A (Power): 1 (5V/1.5A)
Control
RS232 (DB 9-pin male): 1
RJ45 (LAN control): 1
USB Type A (Services): 1
(share with USB A Output)
Others
Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
(AC in)
Power Consumption: Normal: 255W
Standby: <0.5W
Operating Temperature: 0~40℃
Carton: Brown
Net Weight: 2.33kg
Gross Weight: 3.54kg
Dimensions (WxDxH) with Adjustment Foot: 294x218x110mm
Packing Dimensions: 415x168x297mm
OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish,
Indonesian, Hindi, Arabic, Vietnamese, Greek, Total 23 languages
User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish,
Arabic, Czech, Thai, Vietnamese, Total 20 languages
