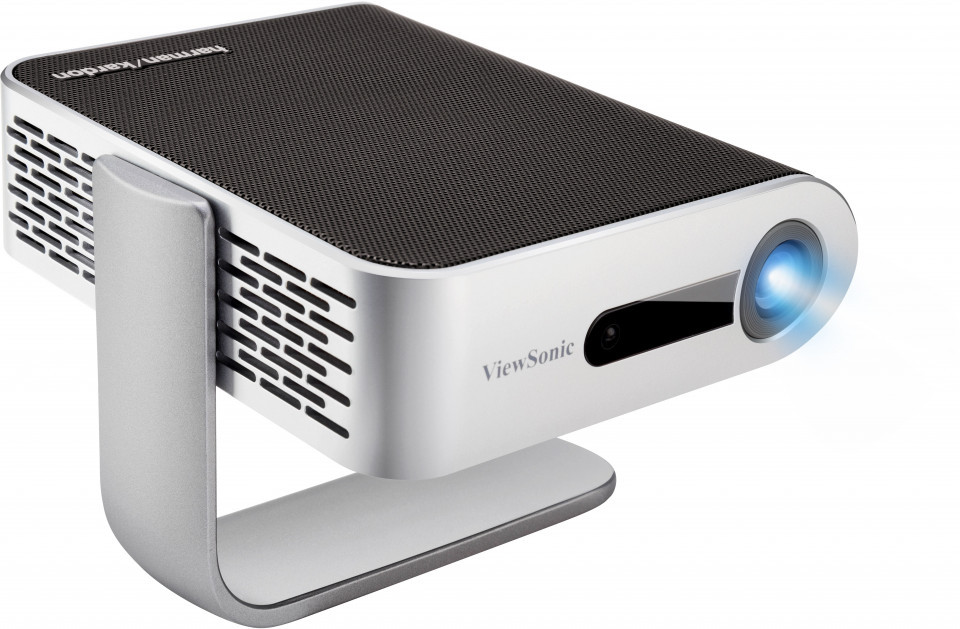

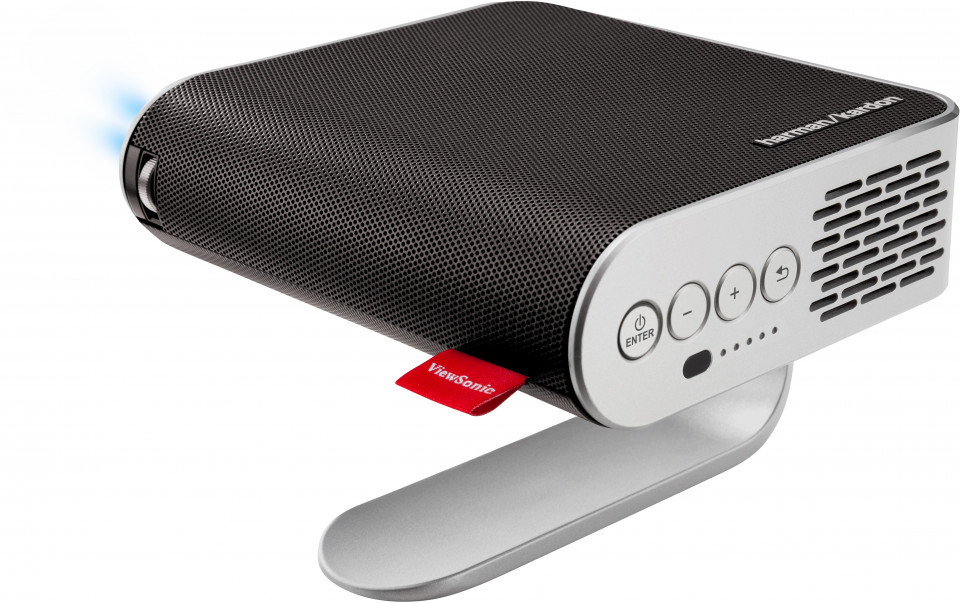

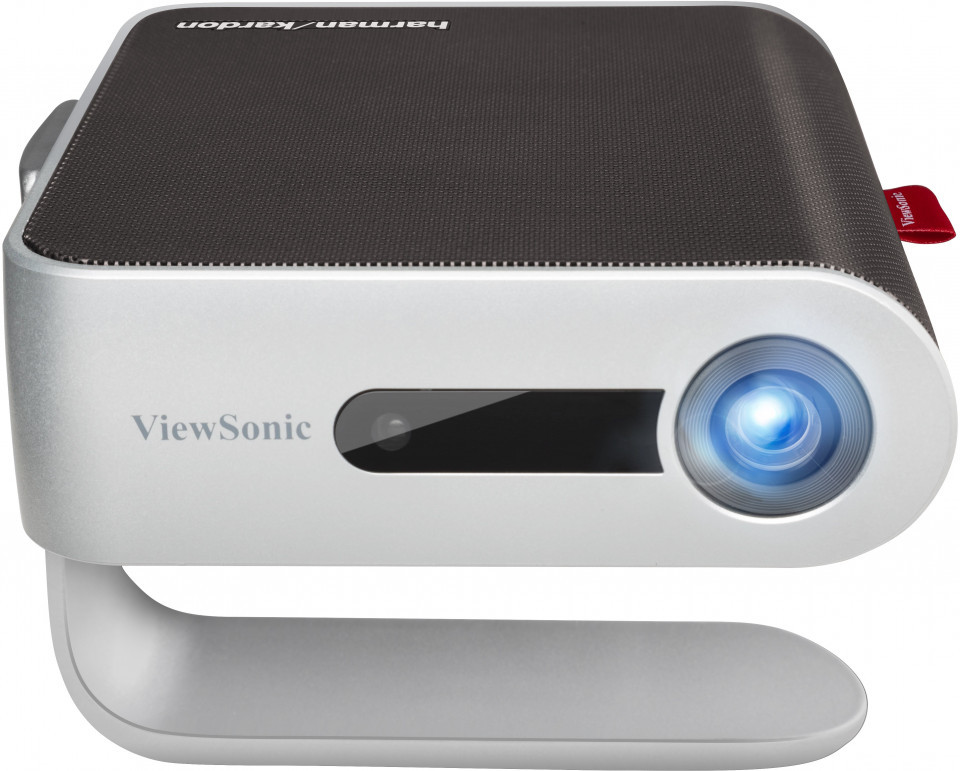

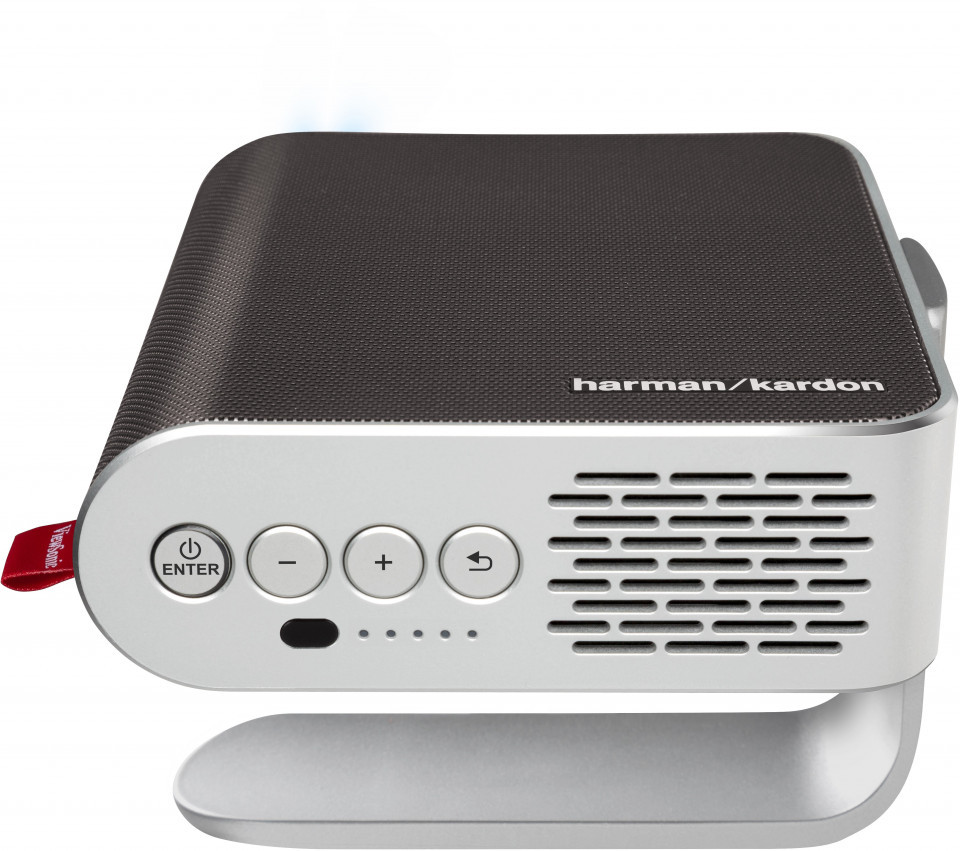

ViewSonic M1+ Smart LED Portable Projector with Harman Kardon® Speakers

Smart LED Portable Projector with Harman Kardon® Speakers

  • Smart Wi-Fi & Bluetooth connectivity
  • 360° Smart stand that allows for ceiling projection
  • Integrated stereo Harman Kardon speakers
  • Cinema SuperColor+™ Technology with 125% Rec.709
  • Advanced LED light source with a 30,000-hour lifespan
  • ViewSonic M1+ Smart LED Portable Projector with Harman Kardon® Speakers
  • ViewSonic M1+ Smart LED Portable Projector with Harman Kardon® Speakers
  • ViewSonic M1+ Smart LED Portable Projector with Harman Kardon® Speakers
  • ViewSonic M1+ Smart LED Portable Projector with Harman Kardon® Speakers
  • ViewSonic M1+ Smart LED Portable Projector with Harman Kardon® Speakers
  • ViewSonic M1+ Smart LED Portable Projector with Harman Kardon® Speakers
  • ViewSonic M1+ Smart LED Portable Projector with Harman Kardon® Speakers

Description

OVERVIEW

The ViewSonic M1+ is an iF award-winning, ultra-portable LED projector that can deliver a convenient, enjoyable
entertainment experience anywhere it goes. With a built-in battery, a LED light source with up to 30,000 hours of
lifespan, all packaged into less than 1 kg, the M1+ can deliver years of multimedia entertainment wherever it goes –
from room to room, both inside and outdoors. Its smart stand enables simple 360-degree setup, while doubling as a
lens cover. Once the lens is uncovered, the projector automatically powers on to full brightness for instant
entertainment. Stereo Harman Kardon speakers provide room-filling sound for an amplified experience, while more
flexible audio needs can be realized via Bluetooth. Integrated Wi-Fi connectivity makes streaming easier than ever –
both wireless casting from smart devices and built-in content streaming are possible.


Express Yourself Anywhere You Go

M1+ Portable Cinema

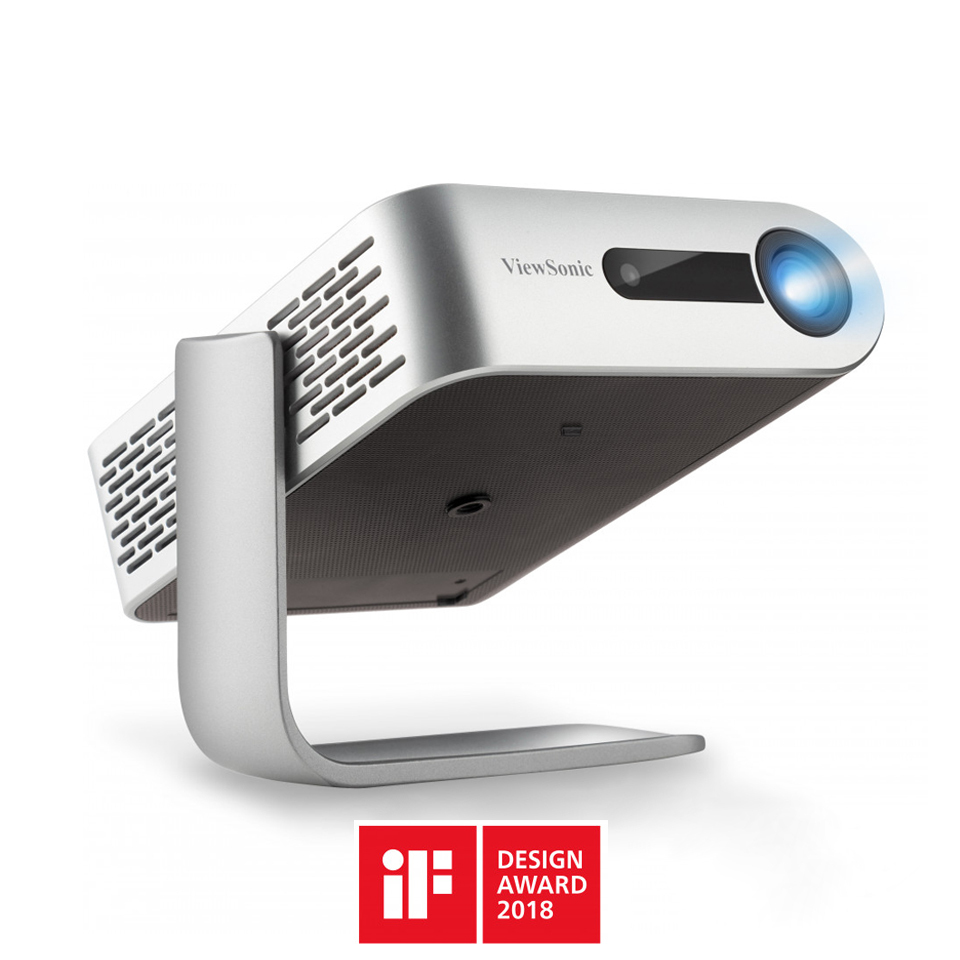

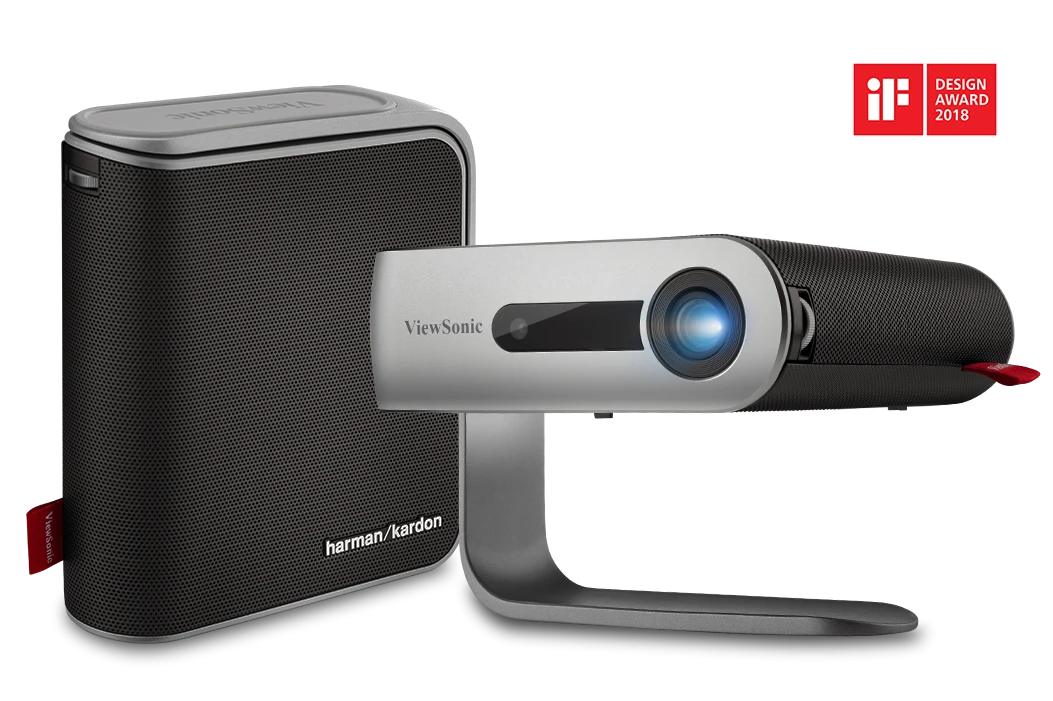

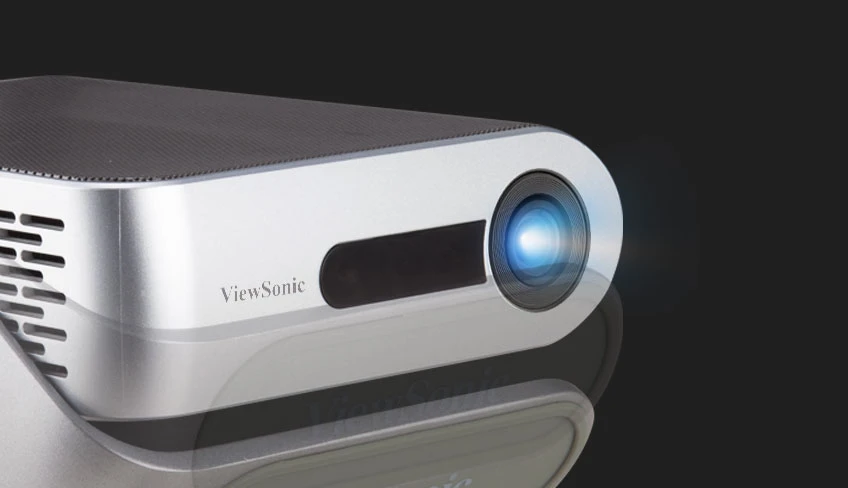

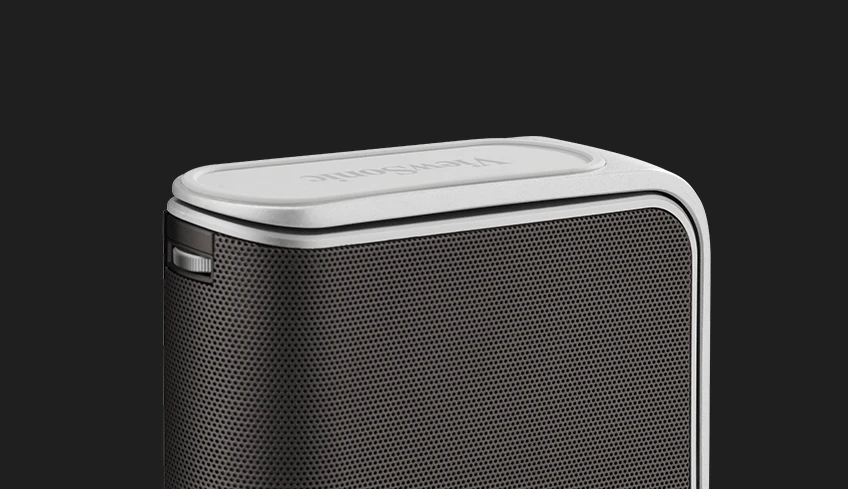

iF Award Design

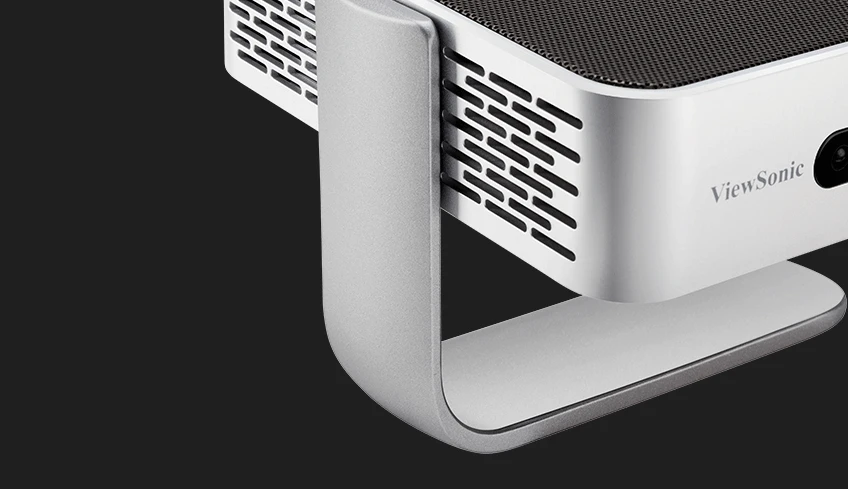

                                     Metal Stand                                                                        Lens Cap                                                                                   Power Combo

                                   Sturdy setup anywhere - no tripod needed.                                                       The stand also doubles as a lens cover to protect the lens from being                                  Swivelling the stand to uncover the lens powers the projector on in an
                                                                                                                                                    damaged when being transported.                                                                                                                   instant.








Mirror the Screen from Your Phone,
to the Projector

Projecting your phone screen from your projector has never been easier. Wirelessly connect the M1+ to your smart
device* and enjoy big screen entertainment.



*iPhone and Android phones are supported and they need to be connected to the same network as the M1+.

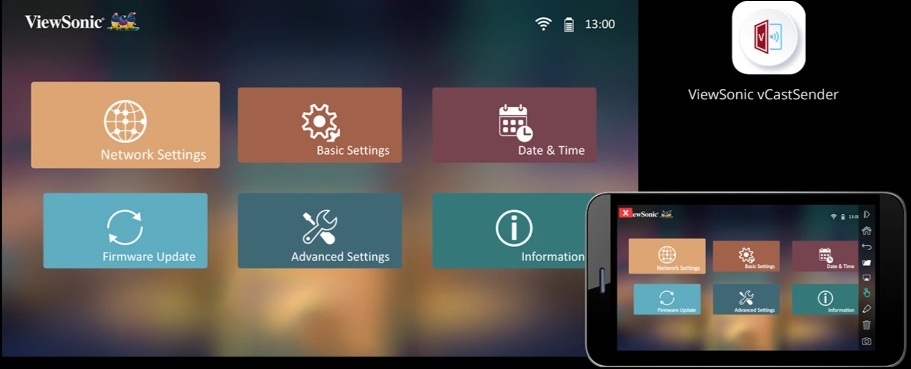

Intuitive Touch Control with your phone

Now you can turn your mobile device into an alternative powerful remote control – intuitive touch control, easy
typing, and simple annotation on the big screen. Simply download the ViewSonic vCastSender app on your
phone, make sure your phone and the projector are connected to the same Wi-Fi network, and pair them up in
the app to get started.

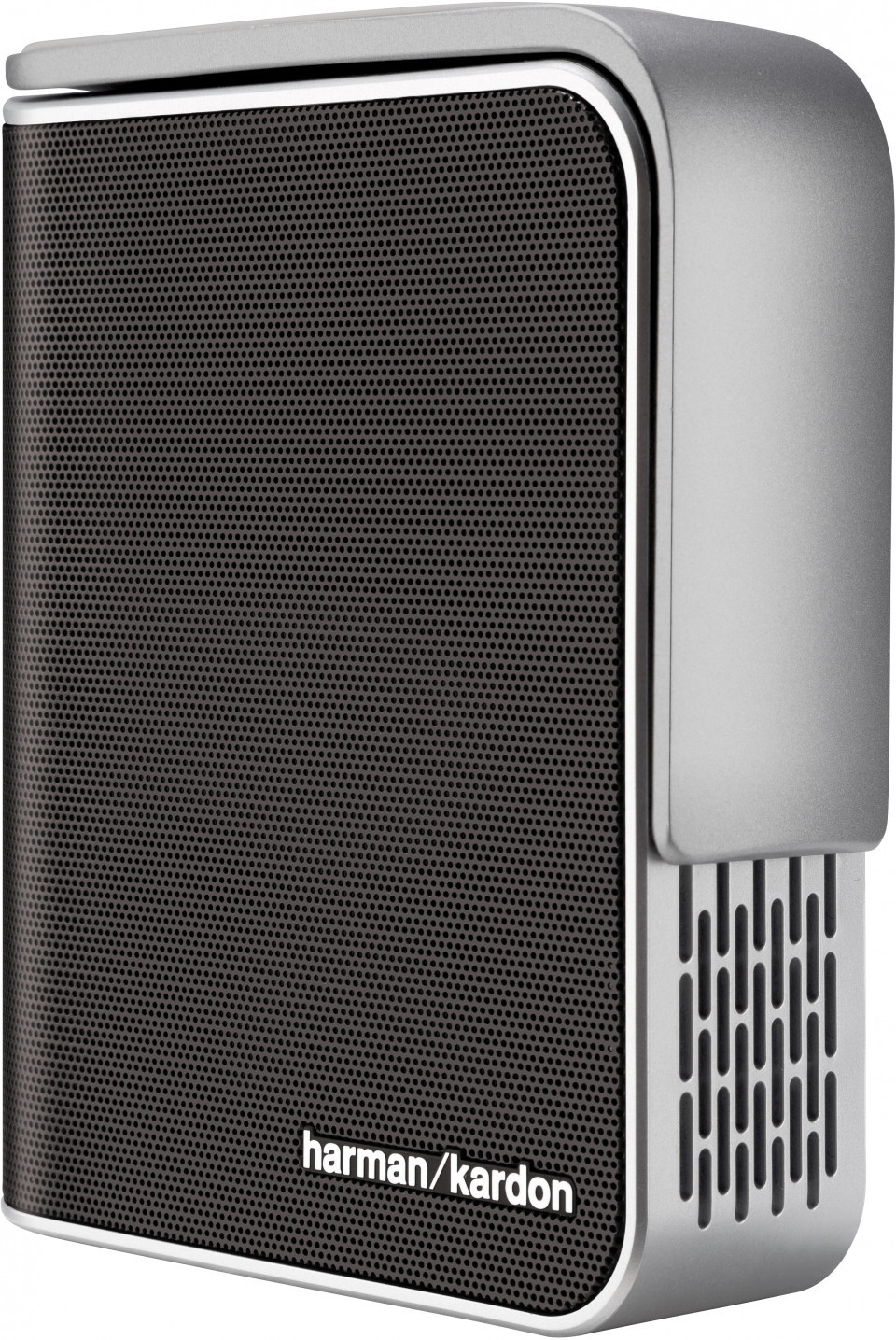

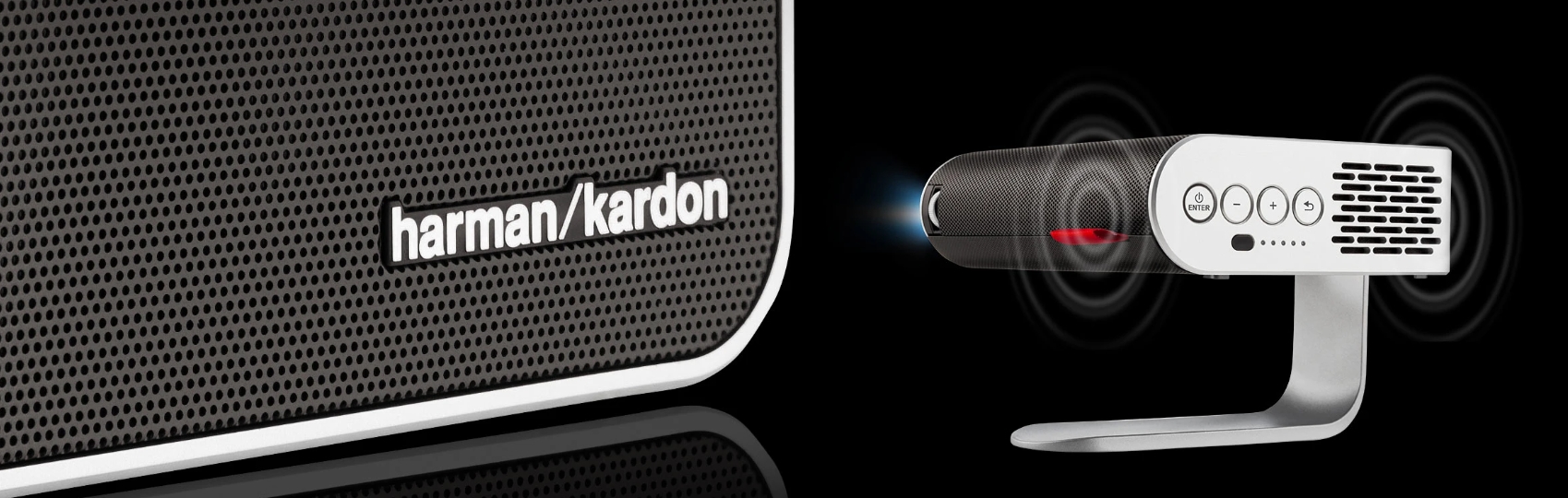

Room-Filling Sound

Dual speakers by Harman Kardon deliver vibrant treble, balanced mids, and strong bass
for an all-around audio feast. What’s more, the projection shuts off when Bluetooth
activates, so you’ll be immersed in pure acoustic heaven with no screen interference.








                                     Movie Mode                                                                         Music Mode                                                                            User Mode

                         Situate yourself in the movies; home theater made perfect.                                           Balanced tuning to deliver you the authentic touch of original                                            With our professional DSP technology, you can customize the way
                                                                                                                                                                     melodies.                                                                                                                    you want to enjoy the audio.




Bluetooth for Flexible Audio Needs

Turn the M1+ into a Bluetooth speaker to play your favorite music in high quality and amplify the pleasure.
Or the other way around, output the audio of a thrilling game from the projector to your own Bluetooth
headphones, immersing yourself in your own big screen fun.

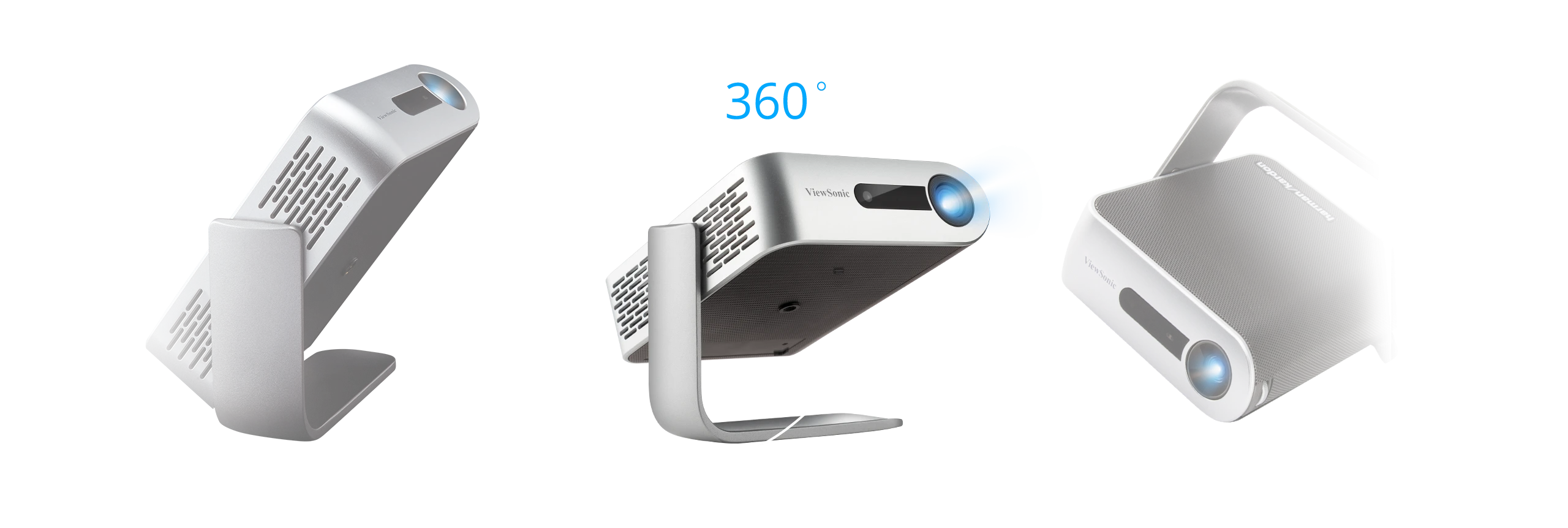

Projection in Every Direction

The M1+ is the perfect companion for lazy Sundays when you just want to relax and unwind.
Whether you’re curled up in bed or lounging around on the sofa, watching the latest episode of
your favourite TV show is more comfortable than ever with the M1+’s 360-degree perfection
projection that lets you project images onto the ceiling, wall, floor or anywhere you please – with
ease.

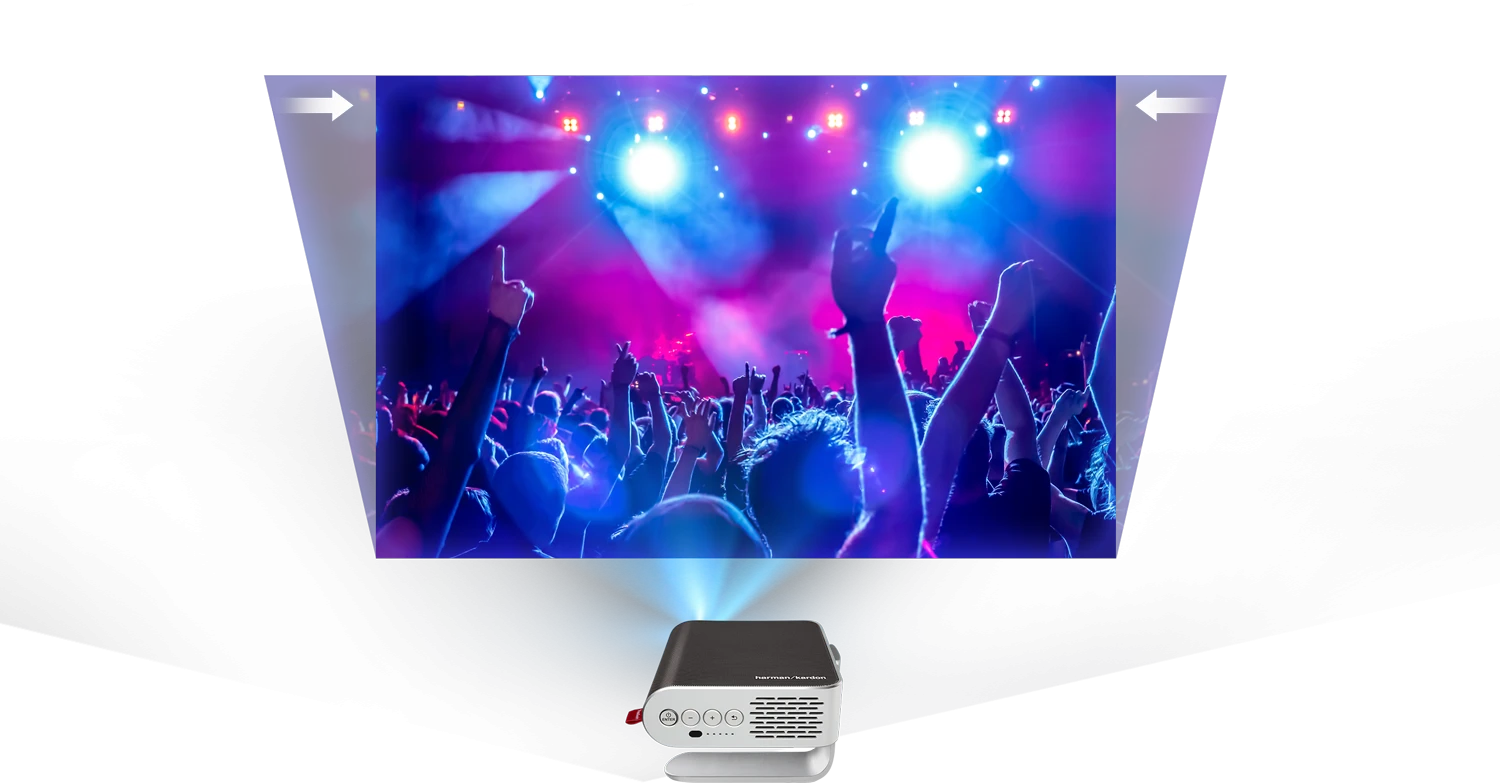

Perfectly Proportioned Images Everytime

Say goodbye to distorted images for good. The M1+ projects perfectly proportioned images at every angle via the
auto keystone feature that corrects images automatically from any angle.

Auto keystone





True-to-life Colors,
Fill You with Wonder

True-to-life colors offered by ViewSonic’s proprietary Cinema SuperColor+™ Technology with 125% Rec.709
give you the vivid touch and feel for rich emotional pleasure.

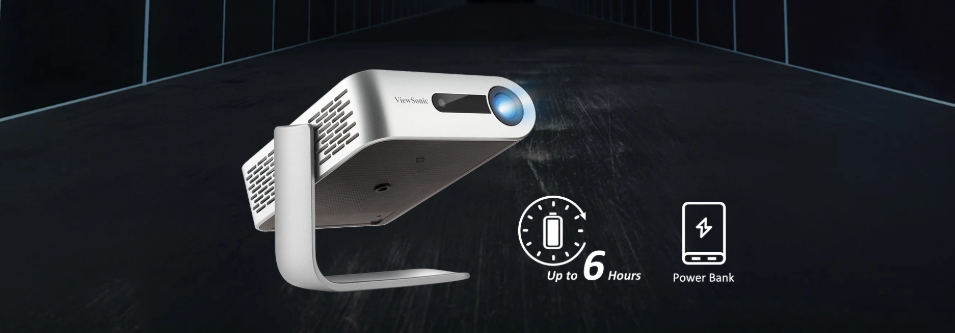

Cinematic Experiences On-The-Go

M1+ is a must-have for your next camping trip or outdoor excursion.
The built-in battery provides up to 6 hours* of entertainment for you and can be extended easily with a power bank
via USB Type-C**, so you don’t have to deal with tangled cords or plug the projector into a power source.


* 6 hour battery life is in Battery saving mode
** To power on the projector, the power bank should be at least 45W (15V/3A) and support Power Delivery (PD) protocol output.

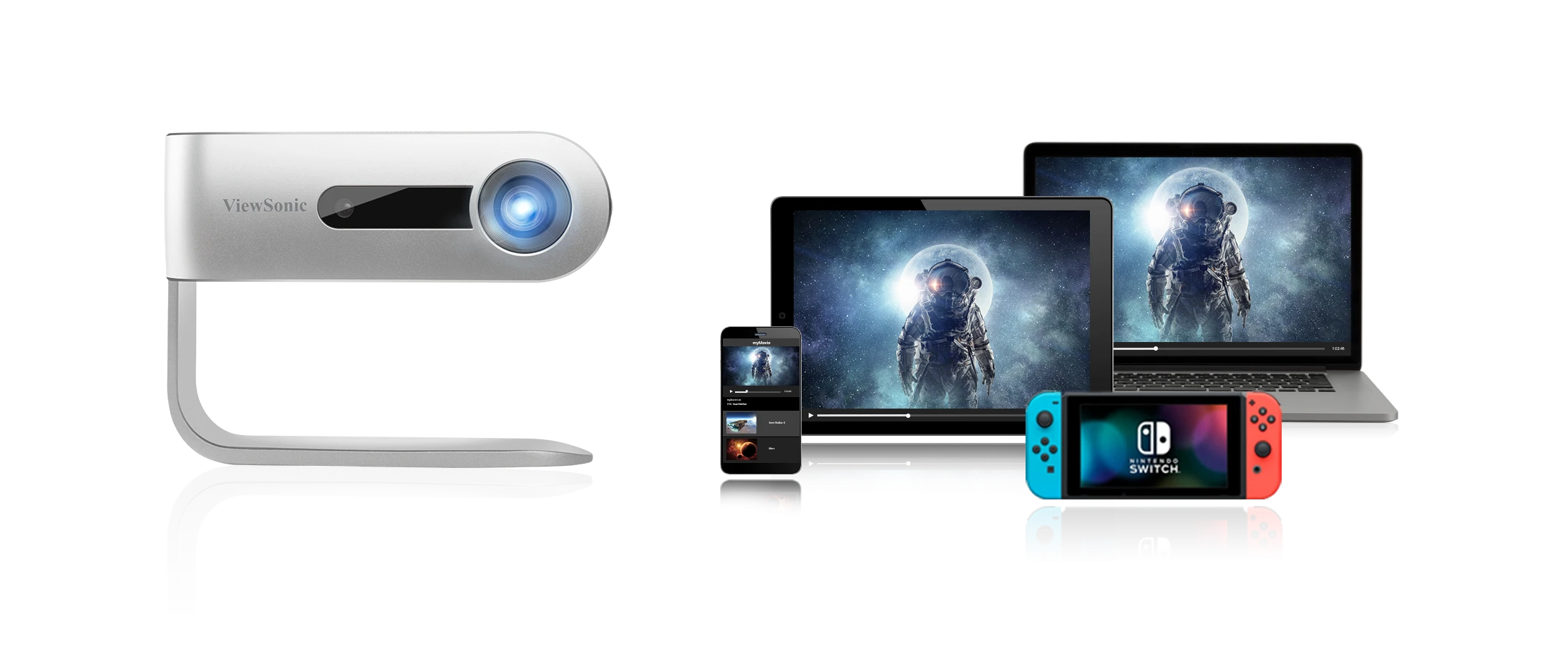

Stream Shows on Your Phone,
Project Them Anywhere You Go

M1+’s USB Type-C connection puts a fun twist on streaming videos and facetiming your friends by allowing you to
project content directly from your phone, laptop or tablet while also charging them simultaneously.
You can even play Switch games on the big screen via direct connection without the dock.

*Only available for devices that support USB Type-C video streaming
*For iPhone and iPad, users need to buy Apple-authorized Lightning to HDMI adaptor

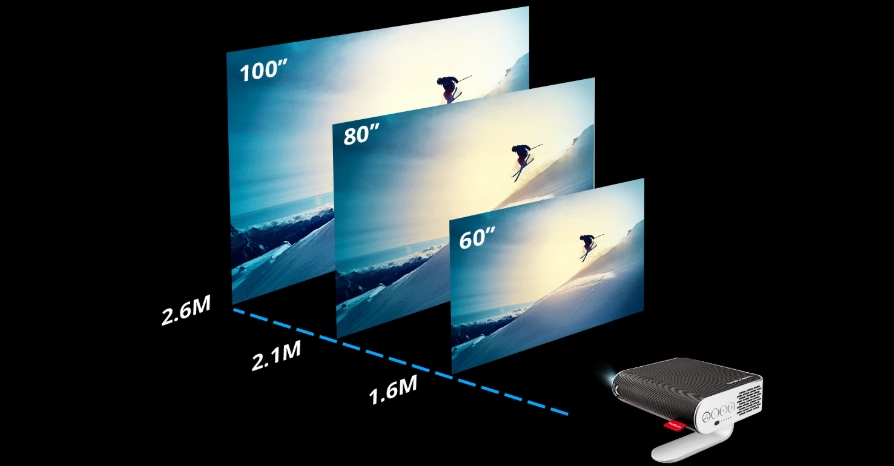

Fit for Spaces of All Shapes and Sizes

Project 100’’ images from only 2.6 meters away – perfect for projecting large images in small spaces.

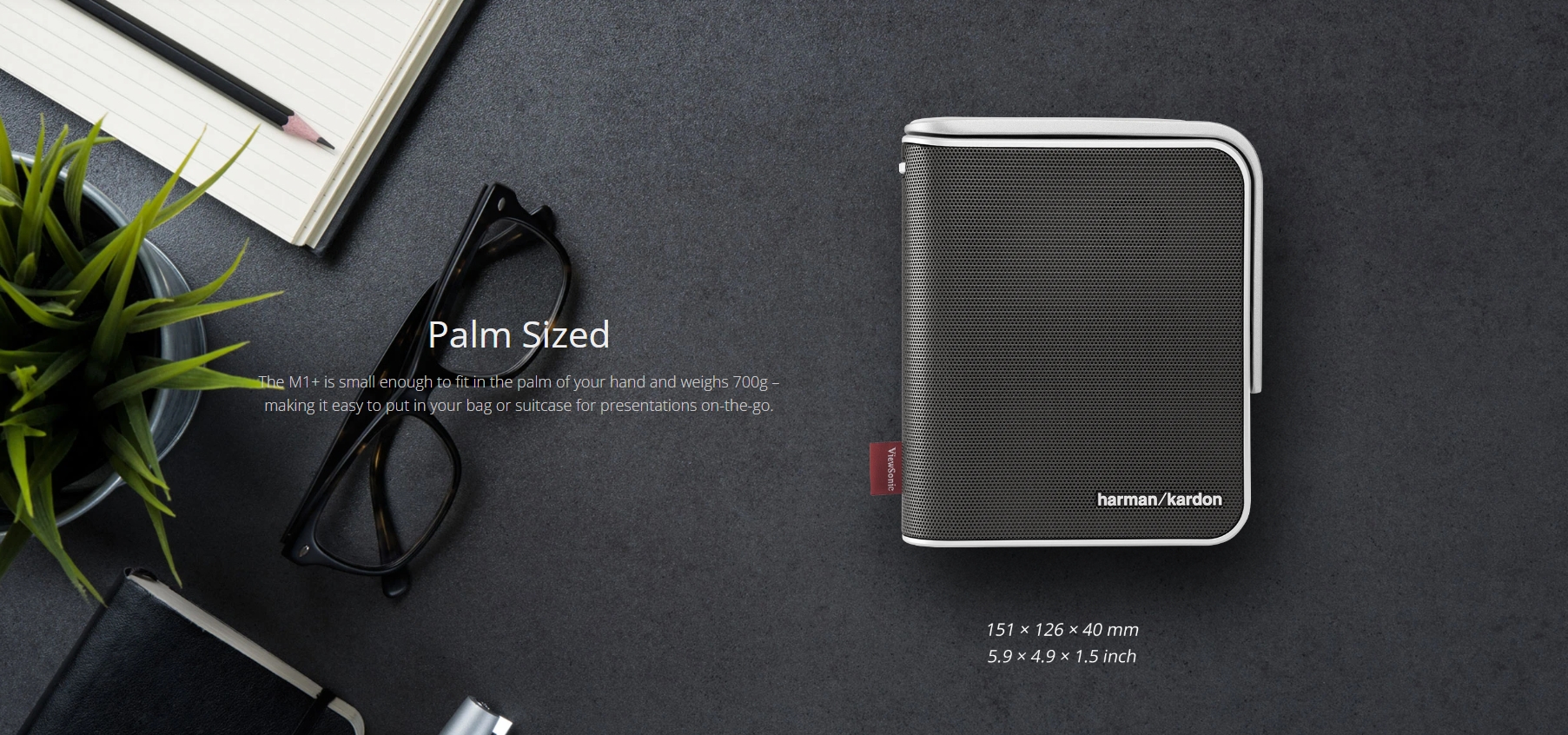

Palm Sized

The M1+ is small enough to fit in the palm of your hand and weighs 700g –
making it easy to put in your bag or suitcase for presentations on-the-go.

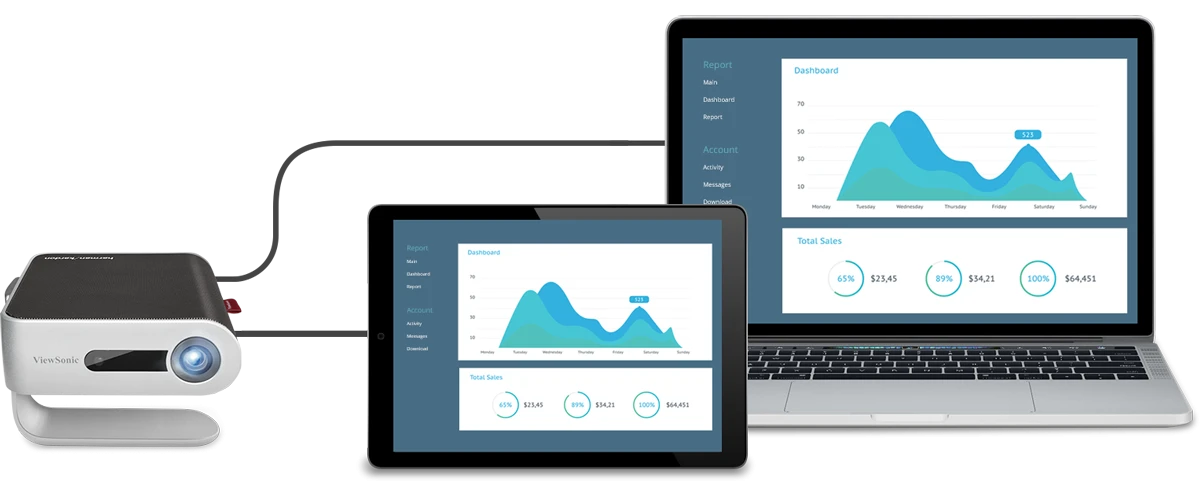

Plug & Play

The M1+ has a versatile array of connectivity including HDMI and USB Type-C for connecting to your laptop, phone
or tablet as well as USB and MicroSD drives. 12GB of onboard memory allows you to save your favourite content
directly onto the projector itself.

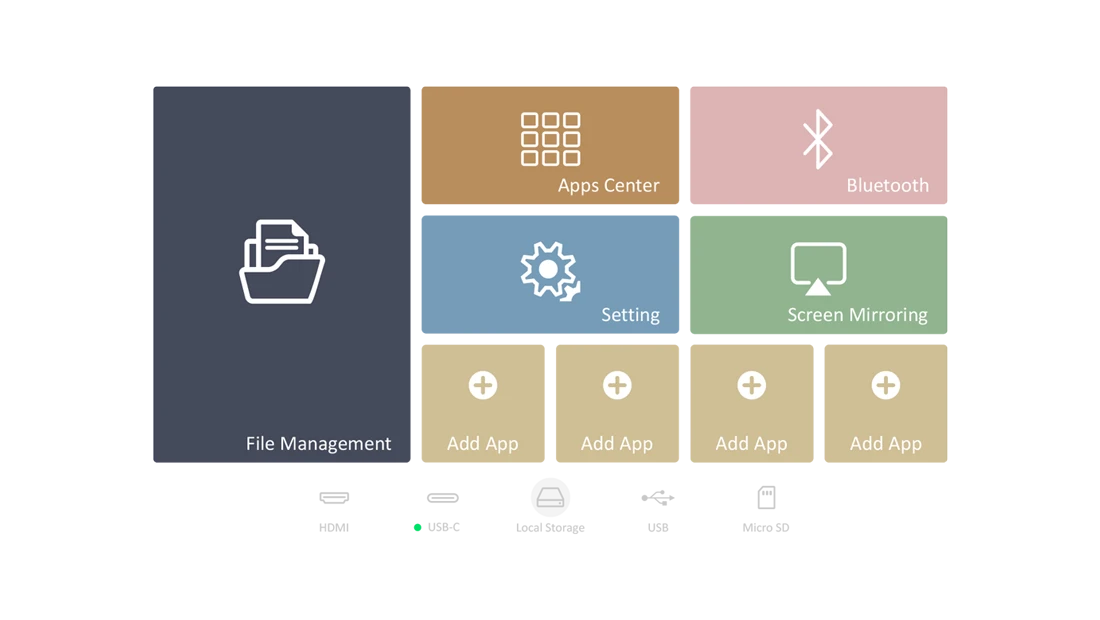

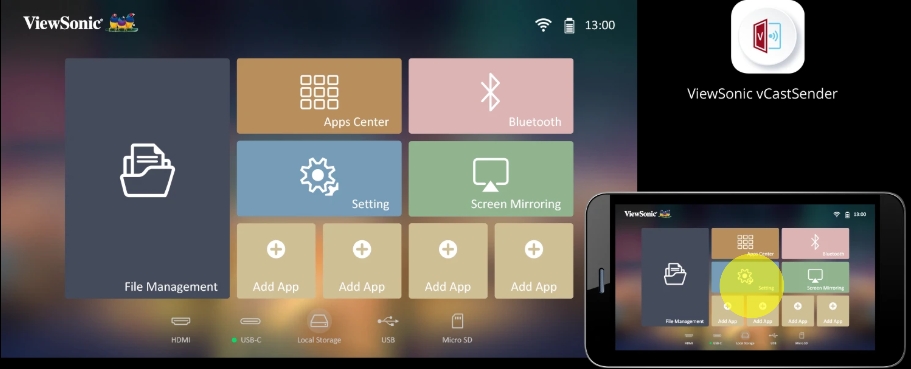

Smart UI for Intuitive Navigation

Free yourself from struggling finding the things you want. With our intuitive and user-friendly interface design, you
can relaxingly navigate around and select a command.

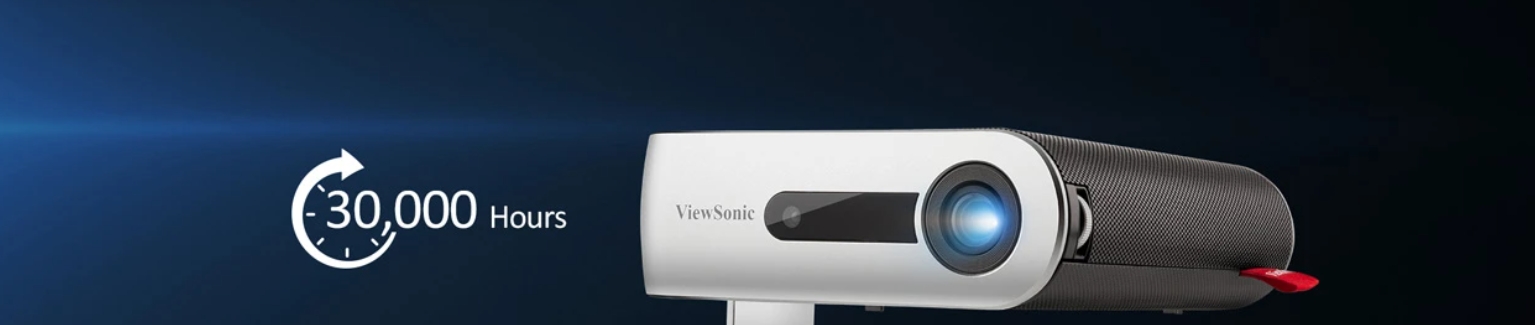

Up to 30,000 Hours Light Source Life

LED technology offers up to 30,000 hours of usage – a significant upgrade when compared to traditional mercury
lamp projectors.

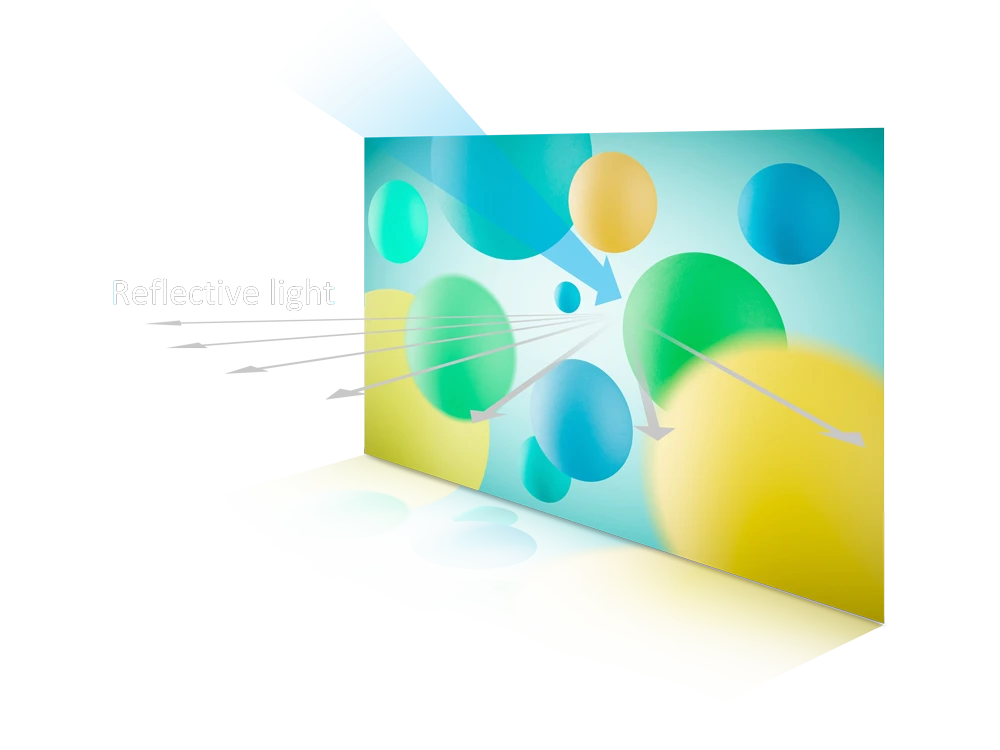

      Eye Care

         Utilizing reflective light, which bounces off the wall or projector screen before
         hitting your eyes, the projector makes the viewing experience virtually blue
         light free, less invasive to your sight and reduces eyestrain over prolonged
         viewing periods.

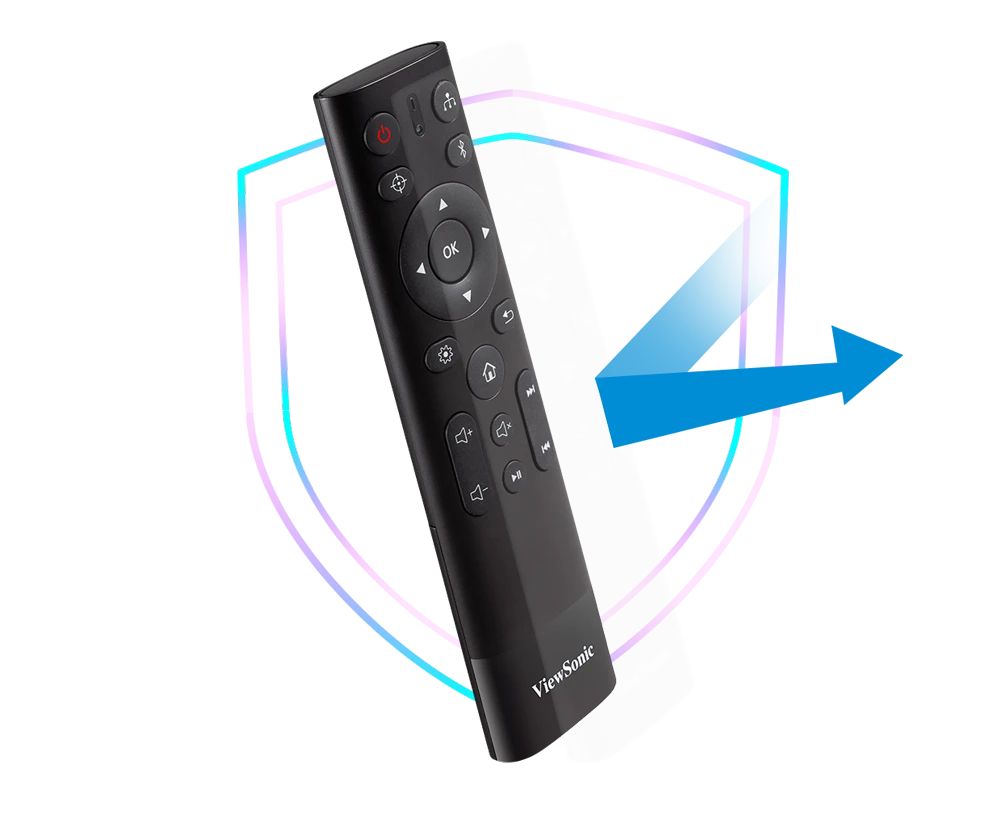

                             TÜV-Certified
                             Antibacterial
                             Remote Control

                                           Stay entertained, stay healthy.
                                           Our antibacterial remote control adopts a special coating with silver ions,
                                           which prevents bacteria from attaching and remains effective even after a
                                           long period of use.










Green Design

Packaging for the M1+ portable projector is paper-based, biodegradable, and
99% recyclable – all the right ingredients for leaving a smaller carbon
footprint.

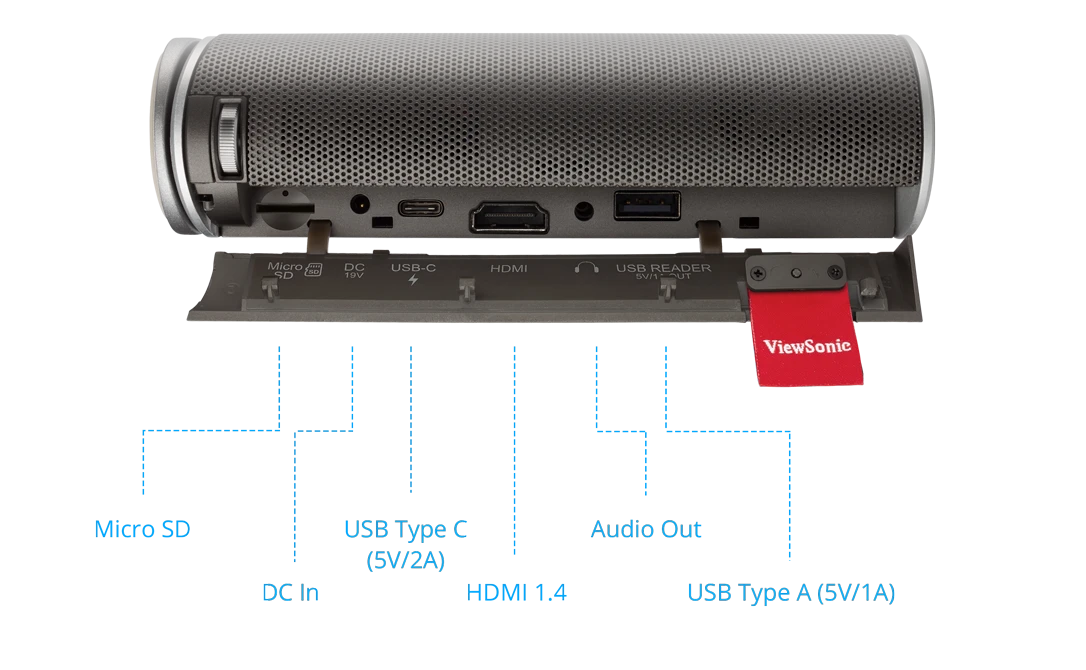

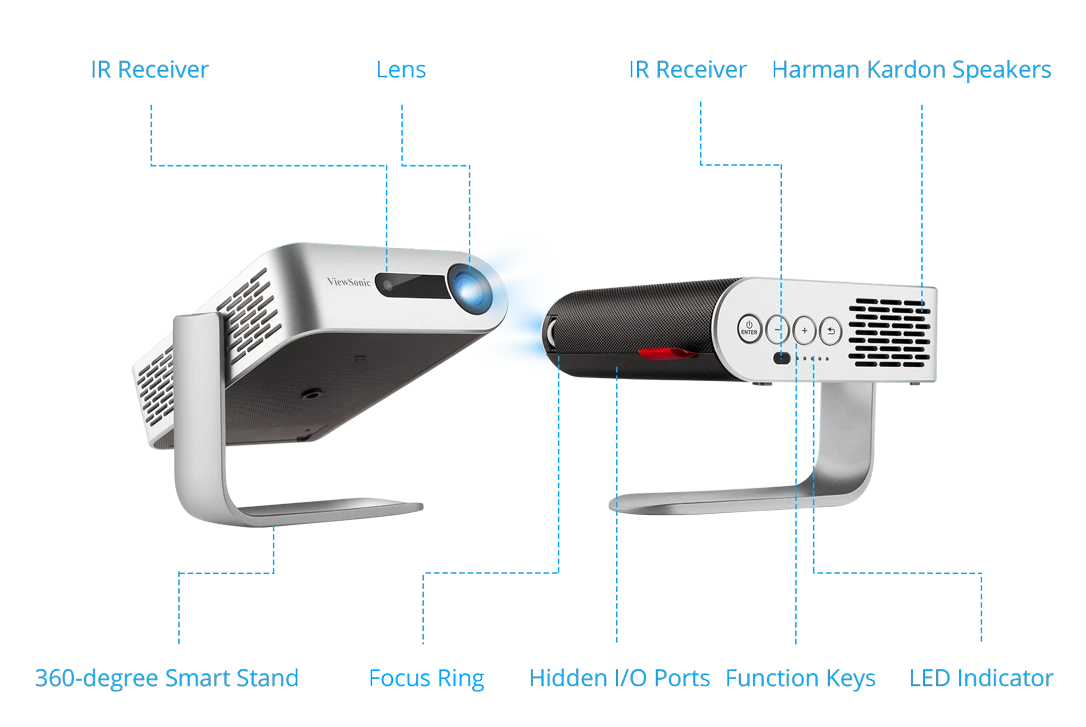

Exterior & Rear I/O Connectors




SPECIFICATIONS

Specification
Projection System: 0.2
Native Resolution: 854x480
Brightness: 300 (LED Lumens)
Contrast Ratio: 120000:1
Display Color: 1.07 Billion Colors
Light Source Type: LED
Light Source Life (hours) with Normal Mode: up to 30000
Lamp Watt: RGB LED
Lens: F=1.7, f=5.5mm
Projection Offset: 100%+/-5%
Throw Ratio: 1.2
Optical Zoom: Fixed
Image Size: 24
Throw Distance: 0.64m-2.66m, (38
Keystone: +/- 40° (V)
Audible Noise (Normal): 26dB
Audible Noise (Eco): 25dB
Local Storage: Total 16GB , (12GB available storage)
Input Lag: 41.5ms
Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Horizontal Frequency: 15K-102KHz
Vertical Scan Rate: 23-120Hz

Input
HDMI: 1, (HDMI 1.4/ HDCP 1.4)
USB Type C: 1 (5V/ 2A)
Audio-in (Bluetooth): 1 (BT4.2)
USB Type A: 1, (USB2.0 Reader)
SD Card: Micro SD (32GB, SDHC)
Wifi Input: 1 (5Gn)

Output
Audio out (3.5mm): 1
Audio-out (Bluetooth): 1 (BT4.2)
Speaker: 3W Cube x2
USB Type A (Power): 1 , (USB2.0 - 5V/1A,, share with USB A Input)

Others
Power Supply Voltage: Power adaptor: , Input: 100~240V, Output: 19VDC / 3.42A, , Battery:, 12000mAh(4000mAh 3.7Vx3), (2.5hrs@Normal, 3hrs@Eco)
Power Consumption: Normal: 45W , Standby: <0.5W
Operating Temperature: 0~40℃
Net Weight: 0.7kg
Dimensions (WxDxH) with Adjustment Foot: 151x126x40mm
OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Total 23 languages
